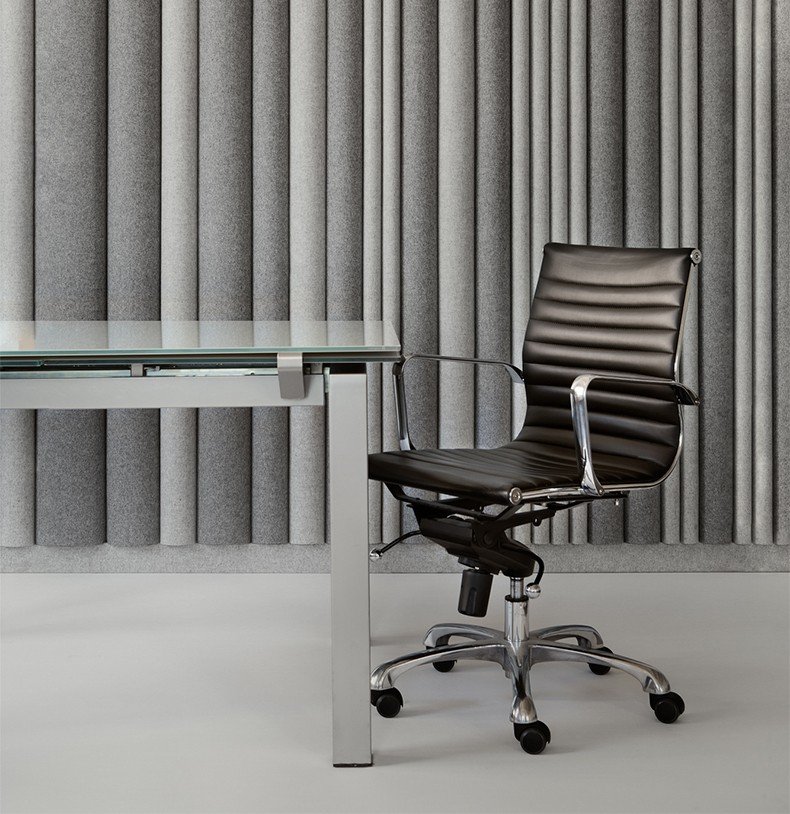

SWELL consists of a series of individual modular panels that can be mixed and matched allowing for maximum creativity. The unique elliptical shaped panels can be configured in a variety of patterns, using a combination of standard and custom sizes. Standard widths range from 2″ to 10″, and panels run vertically or horizontally, wall to wall, or ceiling to floor. Pair SWELL with traditional fabric wrapped panels to further enhance your project.

The Noise Reduction Coefficient, or NRC rating is 0.9, which satisfies all acoustical requirements.

SWELL is designed for an efficient installation, as the fabrication is completed at our facility in Long Island City, and installed by our qualified technicians.

SWELL Overview

SPECIFICATIONS

Product: Swell Contoured Acoustical Panels

Content: Substrate, Plywood, Felt

Panel Widths: 2″, 4″, 6″, 8″, & 10″

Maximum Length: 120”

Mounting Options: Quick grab formula and concealed nails

Lead Time: 4-6 weeks

Acoustics: ASTMC 423: NRC->0.9 SAA 1.0 Based off of 3” Panel

Fire Rating: California Technical Bulletin 117-2013; NFPA 260 + UFAC Class 1

Colorfastness: AATCC-16 (40 Hours) 4 Minimum

Environmental: Rapidly renewable and compostable. Certified on the EU ecolabel.

ACOUSTICAL RATINGS

Ratings image

INSTALLATION & PROJECT REQUIREMENTS

  1. Product to conform to the elevations per finish plan

  2. All shop drawing must be approved before fabrication can commence

  3. Sample to be submitted for approval

  4. Inspect job site before final measurements are taken

  5. Work shall not proceed until all unsatisfactory conditions have been fully resolved

  6. Install panels in proper alignment and in strict accordance with manufacturer’s instructions and shop drawings

  7. Install fabric so texture and grain shall run in the same direction or as designed

  8. All areas to be signed off as accepted before leaving

ADDITIONAL SWELL DETAILS & DOWNLOADS

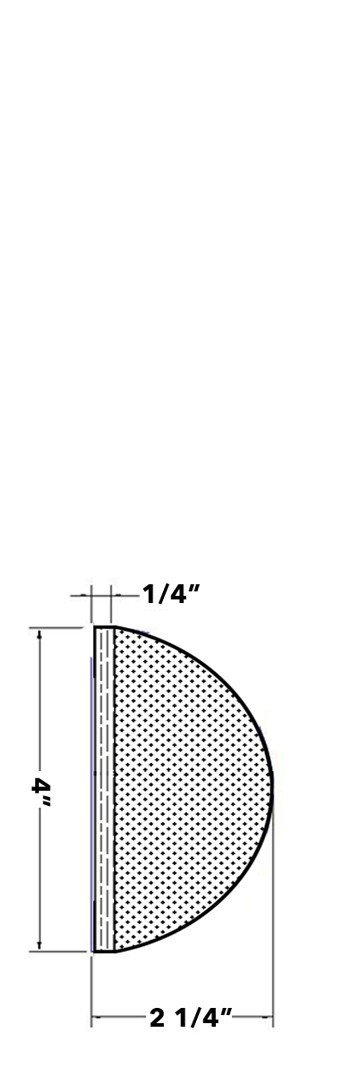

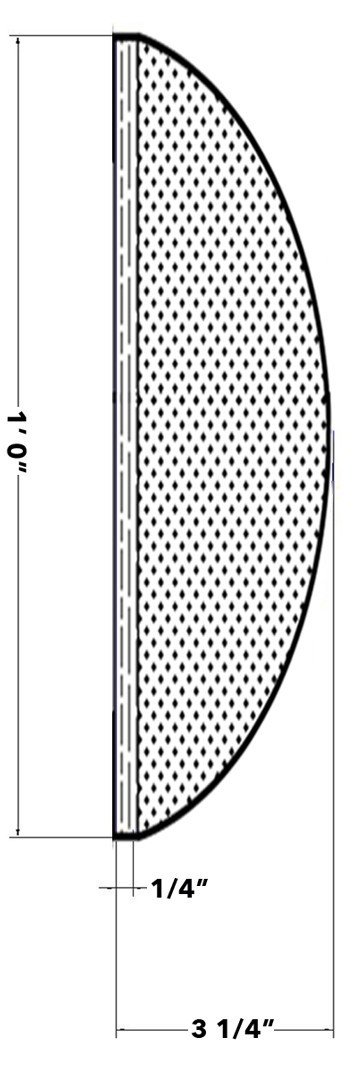

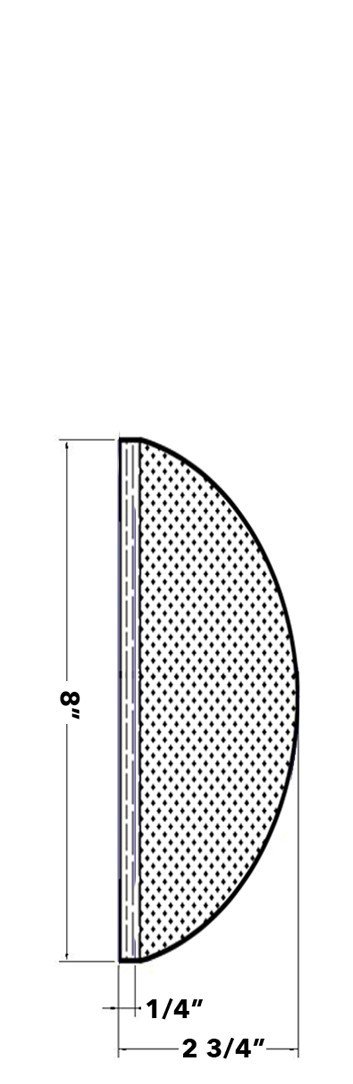

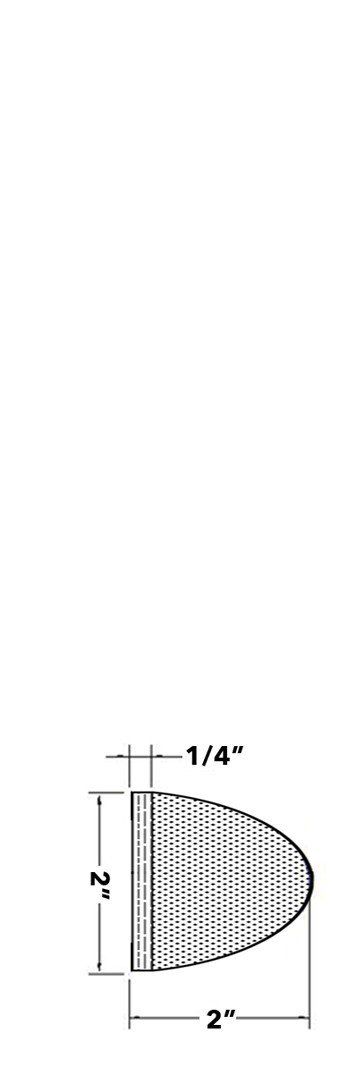

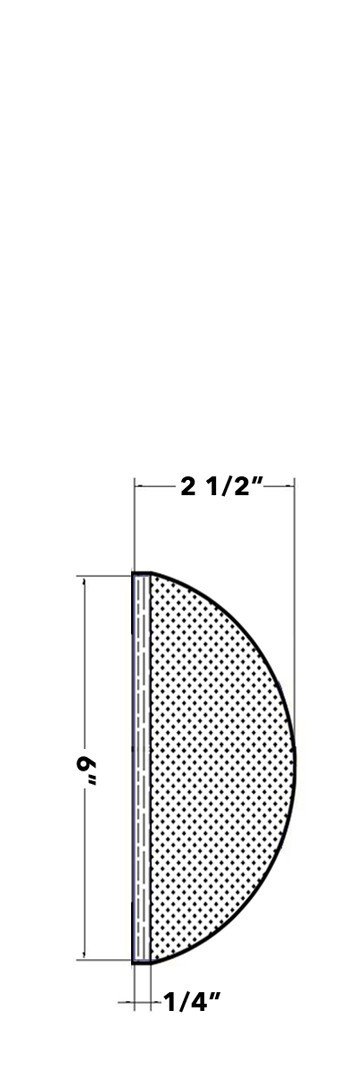

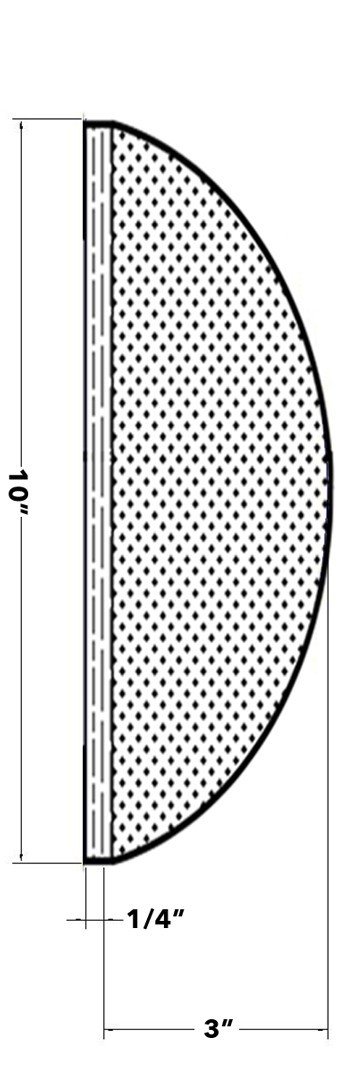

SWELL Panel Widths

SWELL Fabric

SWELL panels are compatible with nearly all fabric suppliers. We selected new 2018 colors that greatly compliment our acoustical panel systems.

Color Swatches

Swell Projects
