ARCH

Our new round arch acoustical panels were designed with versatility in mind. Our 5 basic shapes, available in 8″ and 12″ widths, fit together like a puzzle, and can be installed vertically or horizontally, in any direction.

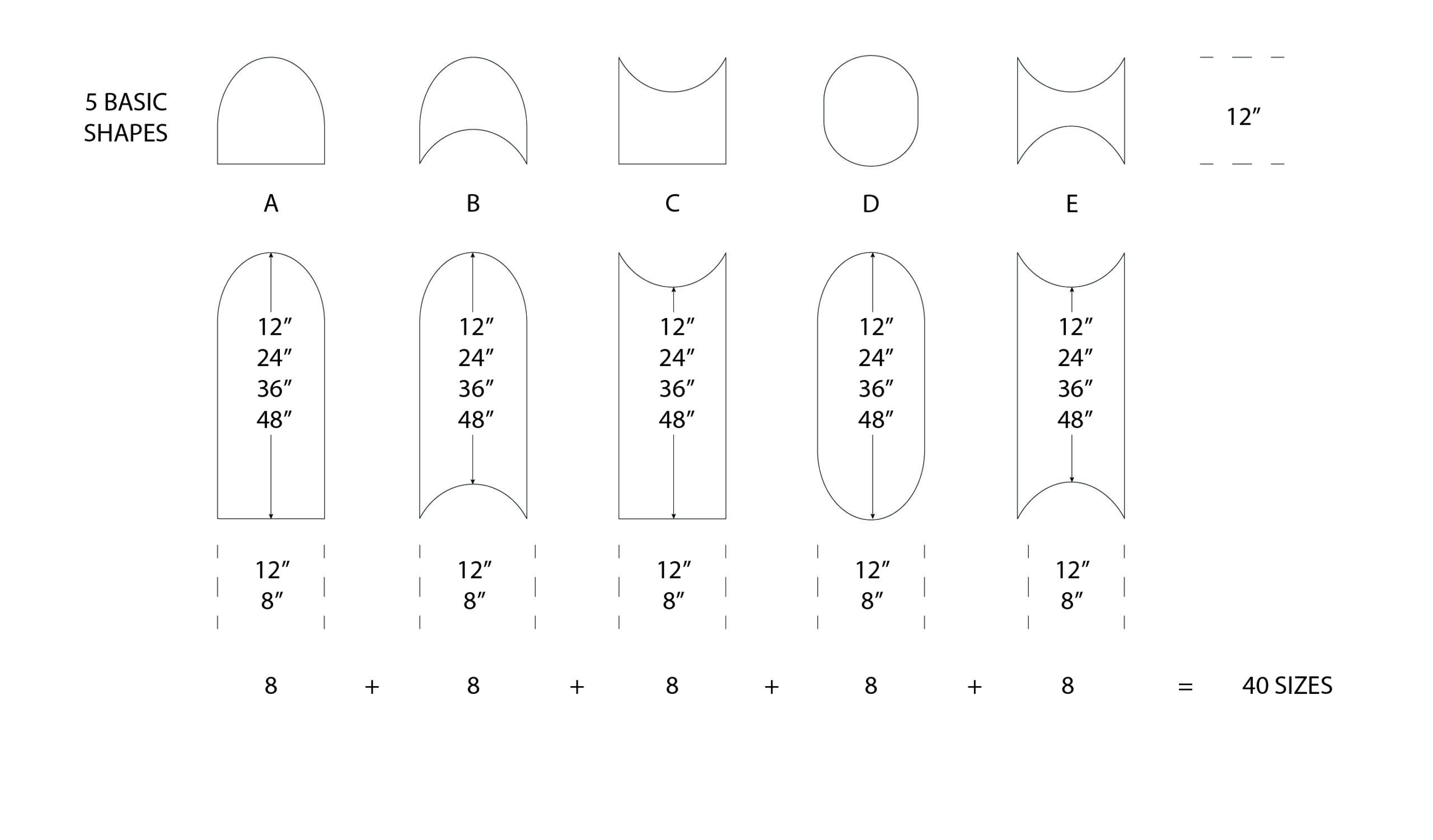

5 Basic Shapes

ARCH Overview

SPECIFICATIONS

Substrate(s): Quiet-Core™ (Acoustical)

Fabric: ARCH is compatible with nearly all fabric suppliers

Panel Widths: 8” & 12”.

Panel Lenghts:  12”, 24”, 36”, 48”. (reference key above)

Lead Time: 4-6 weeks. Made to order in New York City

Acoustics: 0.8 NRC

Mounting Options: Quick grab formula and concealed nails

Fire Rating: In accordance with ASTM E84, fabric wrapped panels achieve a Class A rating, passing NFPA 701

Documents: ARCH Cut Sheet

Inspirational Layouts

Below are a few layouts that can be used as inspiration for your next project. Not only does Arch provide versatility in shape and size, but the panels can be designed using negative space, or installed to fit a full wall.

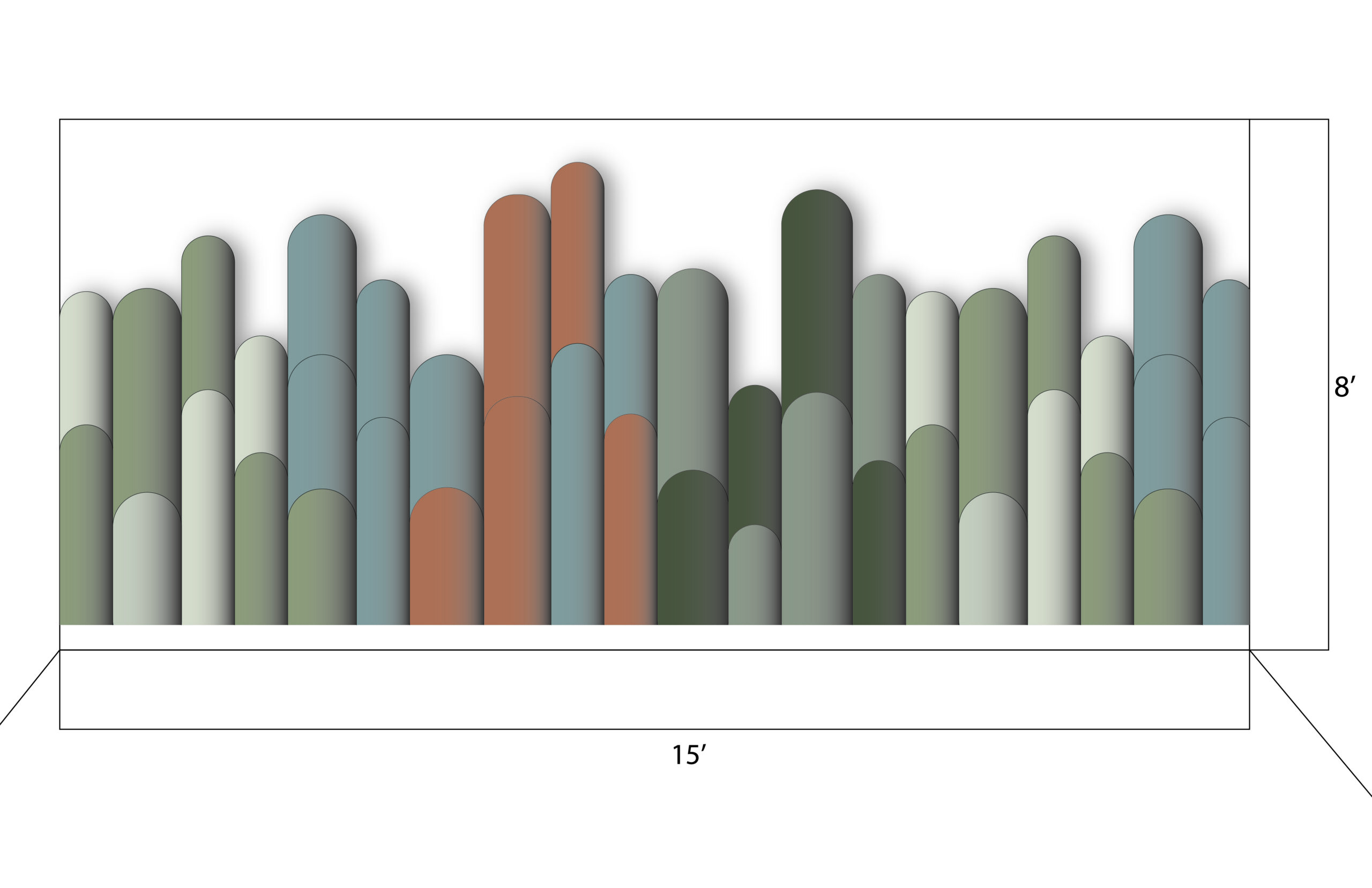

Concept 1: A mix of Shape A and Shape B, vertical panels

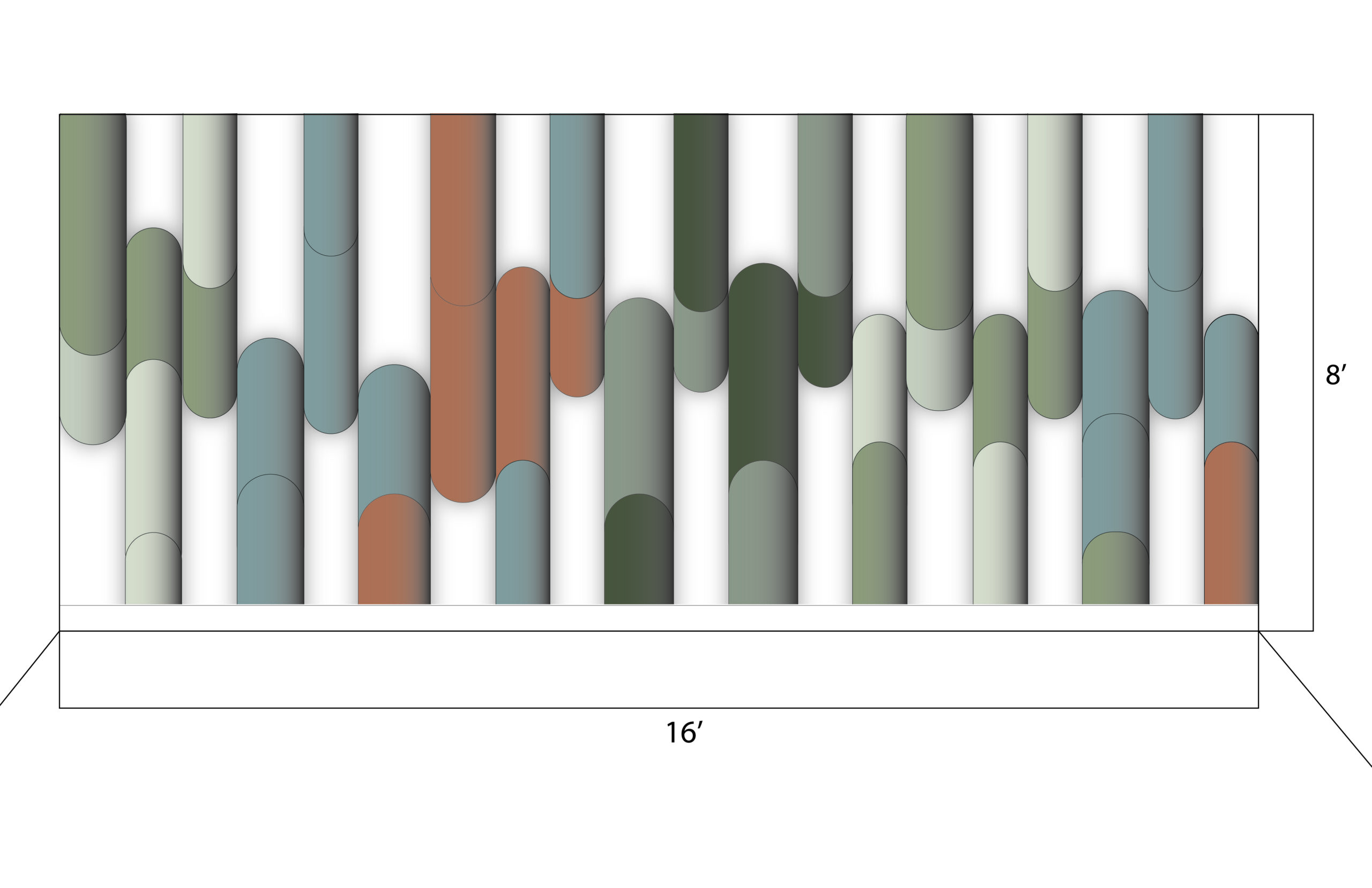

Concept 2: A mix of Shape A and Shape B, vertical panels

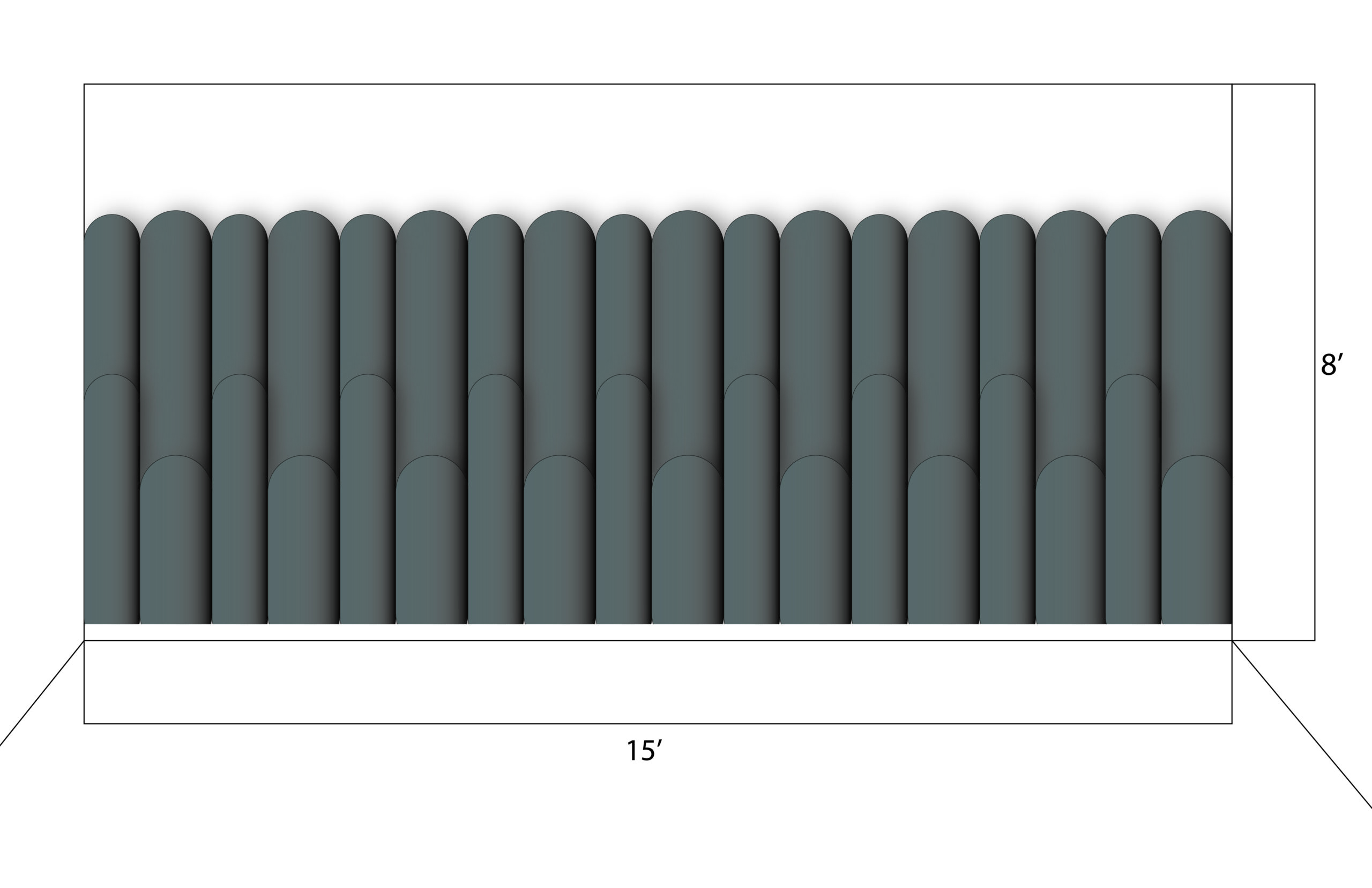

Concept 3: A mix of Shape A and Shape B, vertical panels

Concept 4: A mix of Shape A and Shape B, vertical panels

Concept 5: Shape A, horizontal panels

Concept 6: A mix of Shape A, Shape B, & Shape C, horizontal panels, full wall
