Substrates

QUIET- CORE™

Quiet-Core is a thermal acoustical insulation made from inorganic glass mineral wool. It has excellent sound absorption characteristics, which is an important benefit for today’s office and interior environments. The substrate is finished with an acoustically transparent white liner on the face to ensure the color of the specified fabric.

  • 1” Quiet-Core  – 0.70 NRC
  • 1” Quiet-Core with fabric – 0.80 NRC
Quiet-Core w/ Fabric Testing
Quiet-Core w/o Fabric Testing

QUIET- CORE PLUS™

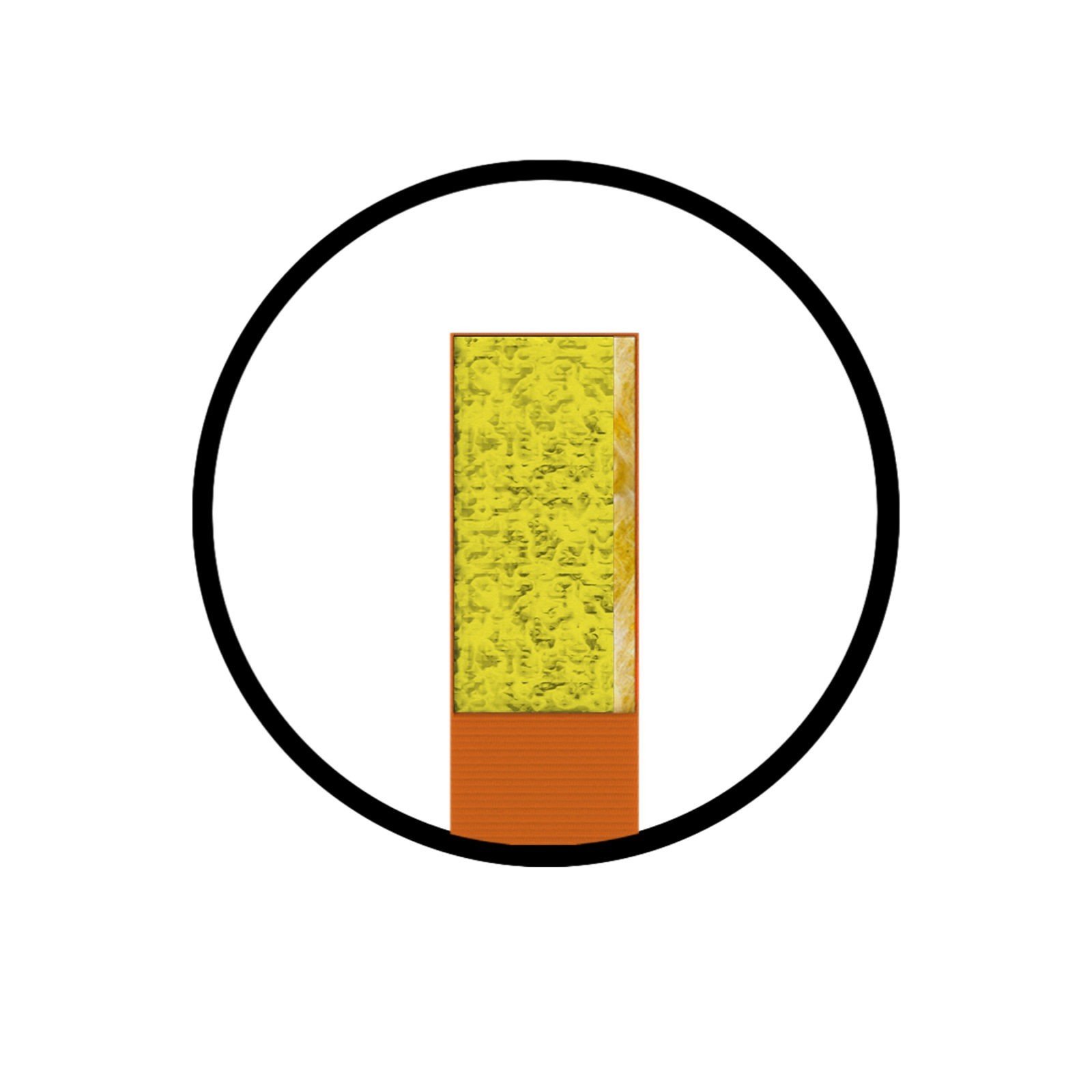

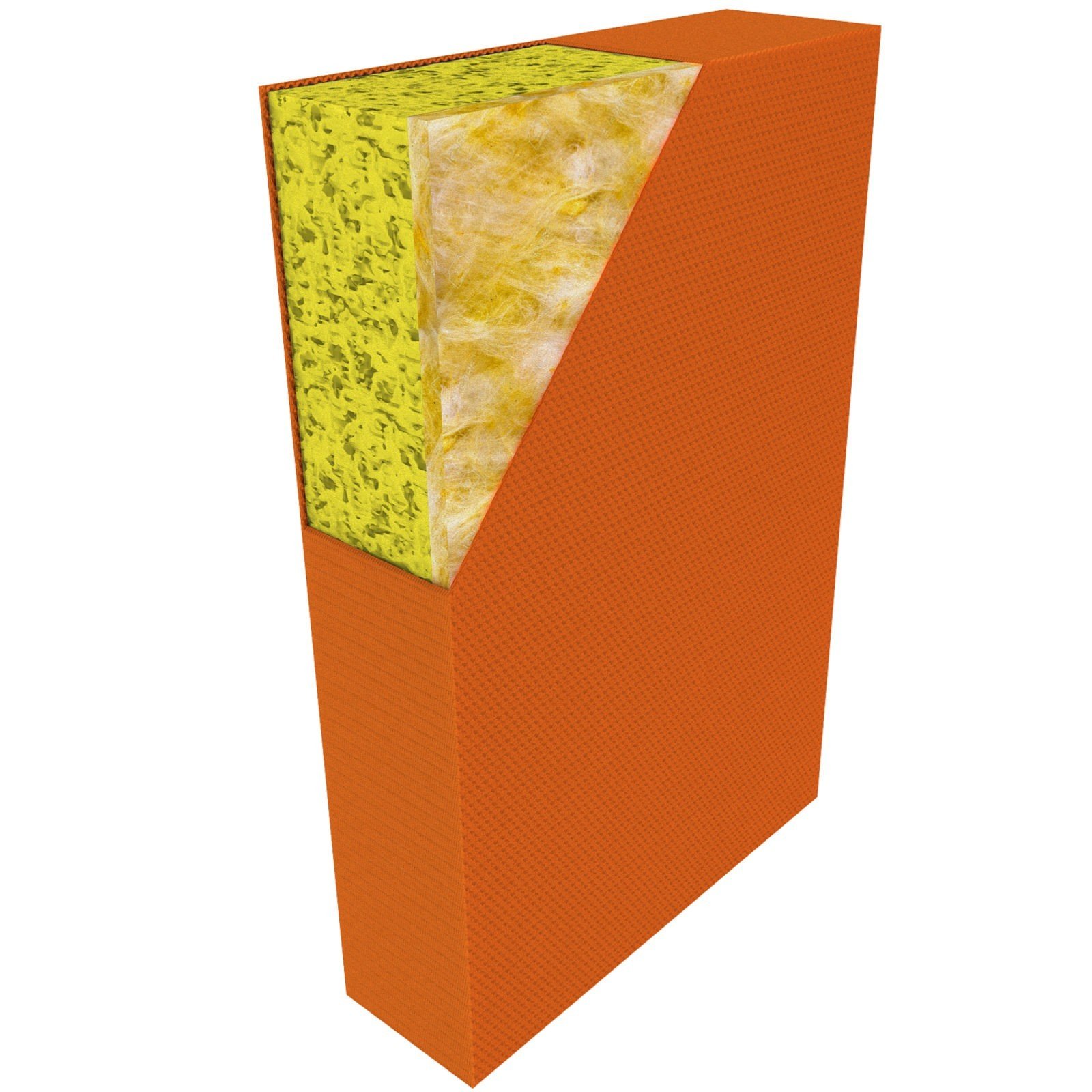

Quiet-Core Plus is a thermal acoustical insulation made from inorganic mineral wool. This substrate is a tackable and acoustical solution.  The panels are constructed with a  1/8” high density substrate, which is fastened to the face of our standard Quiet-Core panel. This panel provides tackability and exceptional acoustical performance.

  • 1 1/8” Quiet-Core Plus  – 0.75 NRC
  • 1 1/8” Quiet-Core Plus with fabric – 0.85 NRC
Quiet-Core Plus w/ Fabric Testing
Quiet-Core Plus w/o Fabric Testing

MI-CORE™

This tackable substrate from DFB offers moderate acoustical properties. Mi-Core™ is constructed with inorganic minerals and fibers, which makes it resistant to moisture and warping. It is suitable for pre-fabricated or site-installed applications. Meets ASTM E84 standards.

  • ¾” Micore- 0.30 NRC
  • ¾” Micore with fabric- 0.35 NRC
