A collection of acoustical panels, offered in 9 V-groove linear patterns and over 90 colors.

Specifying Lane
Select one of our standard patterns. For a panel in a single color select from the (SO) color options below. For a two-tone pattern, select colors from the (SO) base layer + (SF) top felt layer.

Customization
Contact DFB if you are interested in creating your own custom pattern.

Sound Out™ Lane Overview

Product: Sound Out™ Lane (Single Color)

Composition: 100% Polyester Fiber (PET)

Panel Thickness: 0.47″ or 0.94″ (12, 24mm)

Panel Width: 47″ (1220 mm)

Panel Height: 109″ (2800 mm)

V Groove Depth: 6.5mm (Pattern B, Pattern F 5mm depth)

Lead Time: 5-7 weeks (project specific)

Acoustics: ASTMC 423: 1” 0.75 NRC, 0.74 SAA; 1/2” 0.33 NRC, 0.30

Environmental: 75% recycled PET material. DFB’s entire Sound Out™ line is eco-friendly and VOC Free.

Product: Sound Out™ Lane (Two-Tone)

Composition: 100% Polyester Fiber (PET)

Panel Thickness: 0.47″ panel + 0.12″ felt (12mm + 3mm)

Maximum Panel Width: 39″ (1000mm)

Maximum Panel Length: 109″ (2780 mm)

Lead Time: 6-10 weeks (project specific)

Acoustics: ASTMC 423: 1” 0.75 NRC, 0.74 SAA; 1/2” 0.33 NRC, 0.30

Environmental: 75% recycled PET material

Custom: Custom sizes and colors available upon request.

Sound Out™ Lane Cut Sheet
Download PDF

Standard Patterns

The below standard patterns are not to scale and will be made to fit a full size, 47″ x 109″ panel when using a single SO color.
Click each image for specifications.

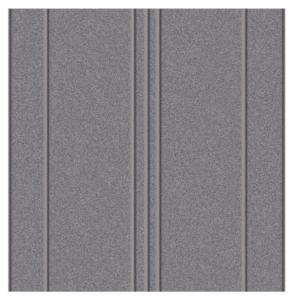

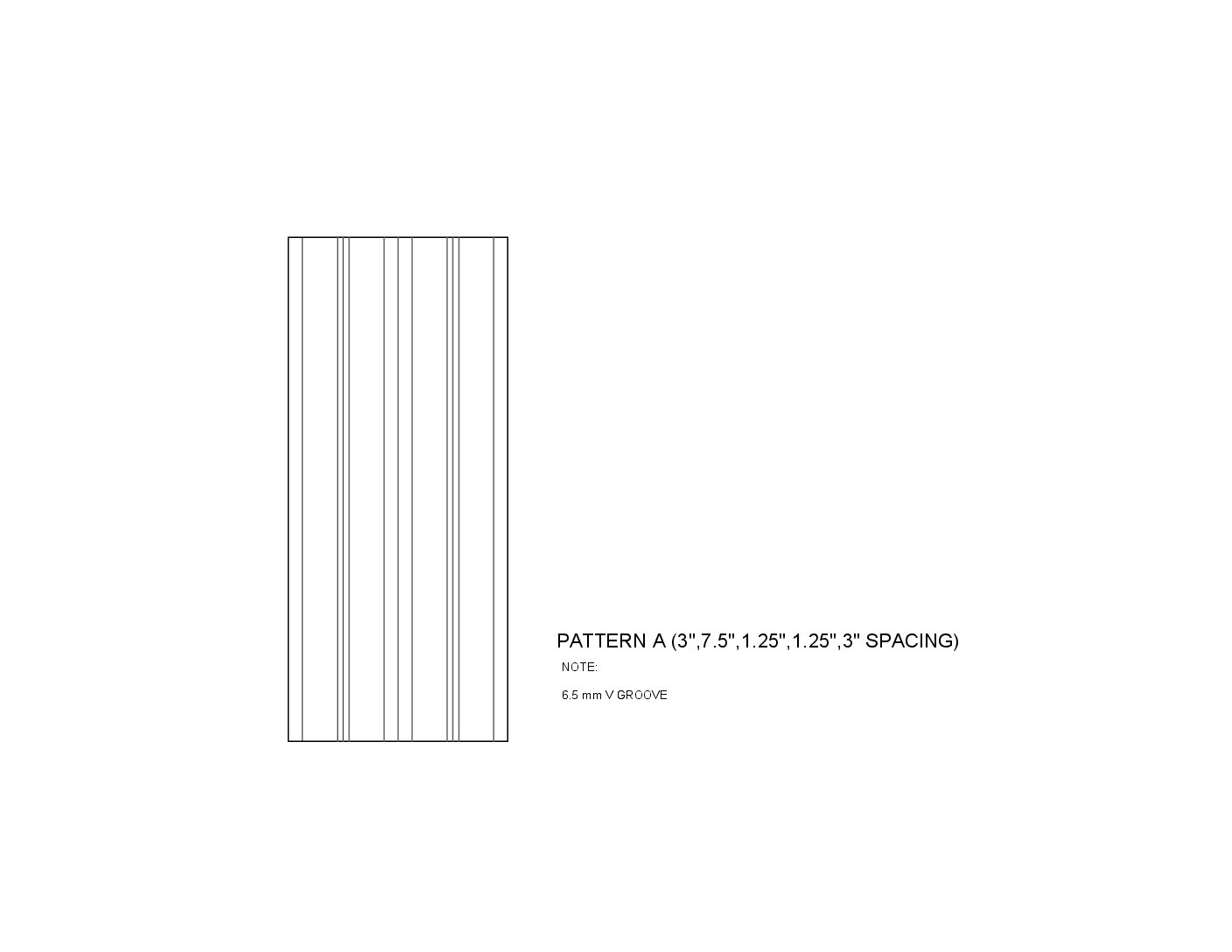

Pattern A

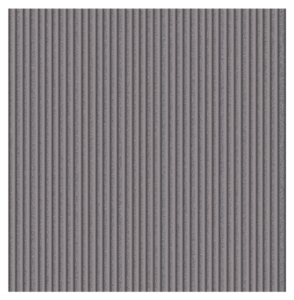

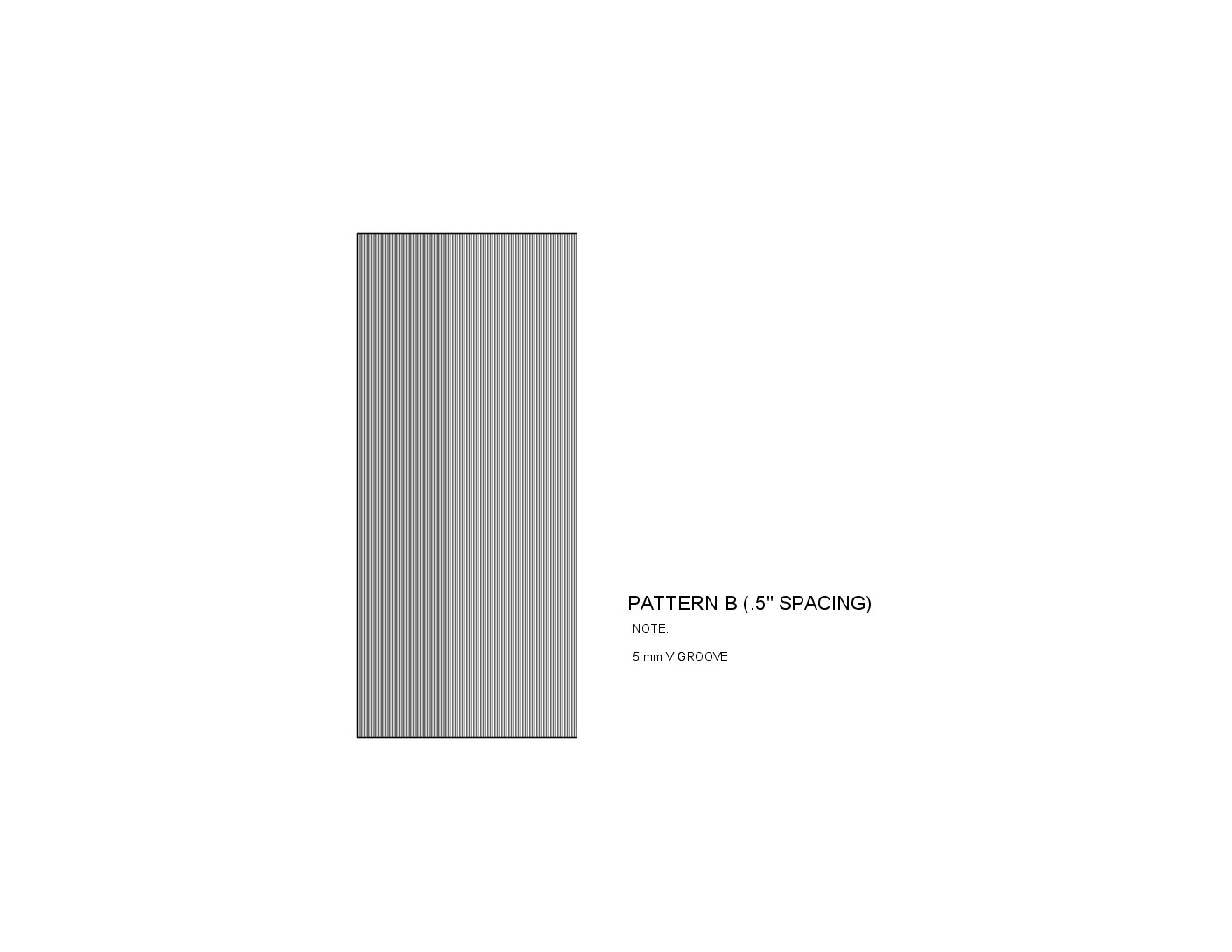

Pattern B

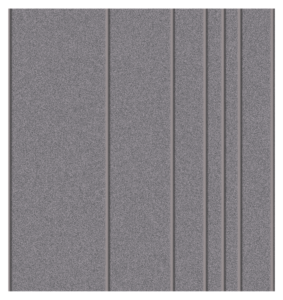

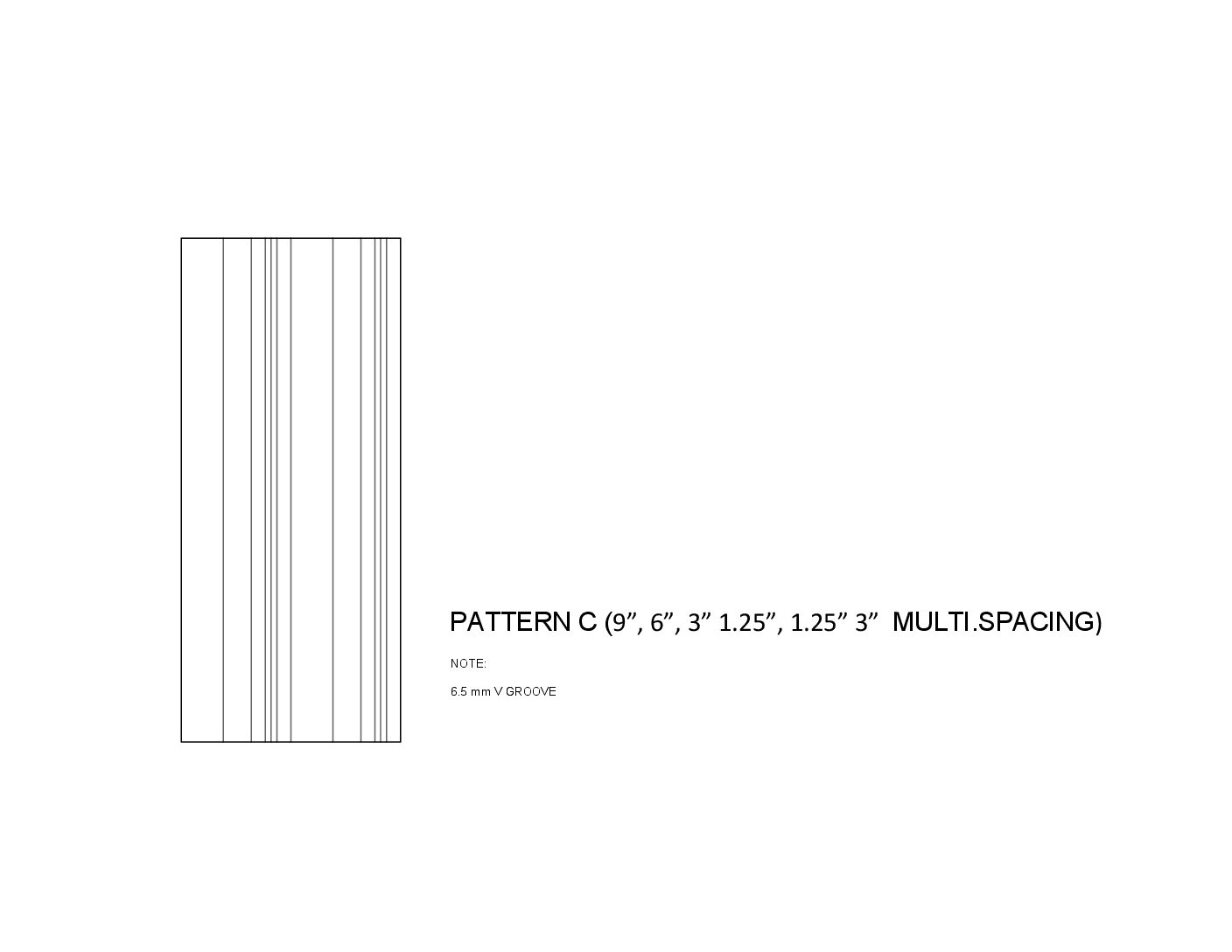

Pattern C

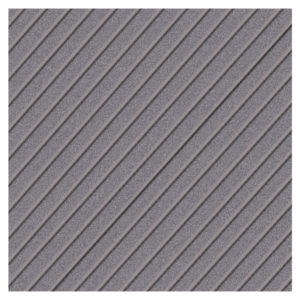

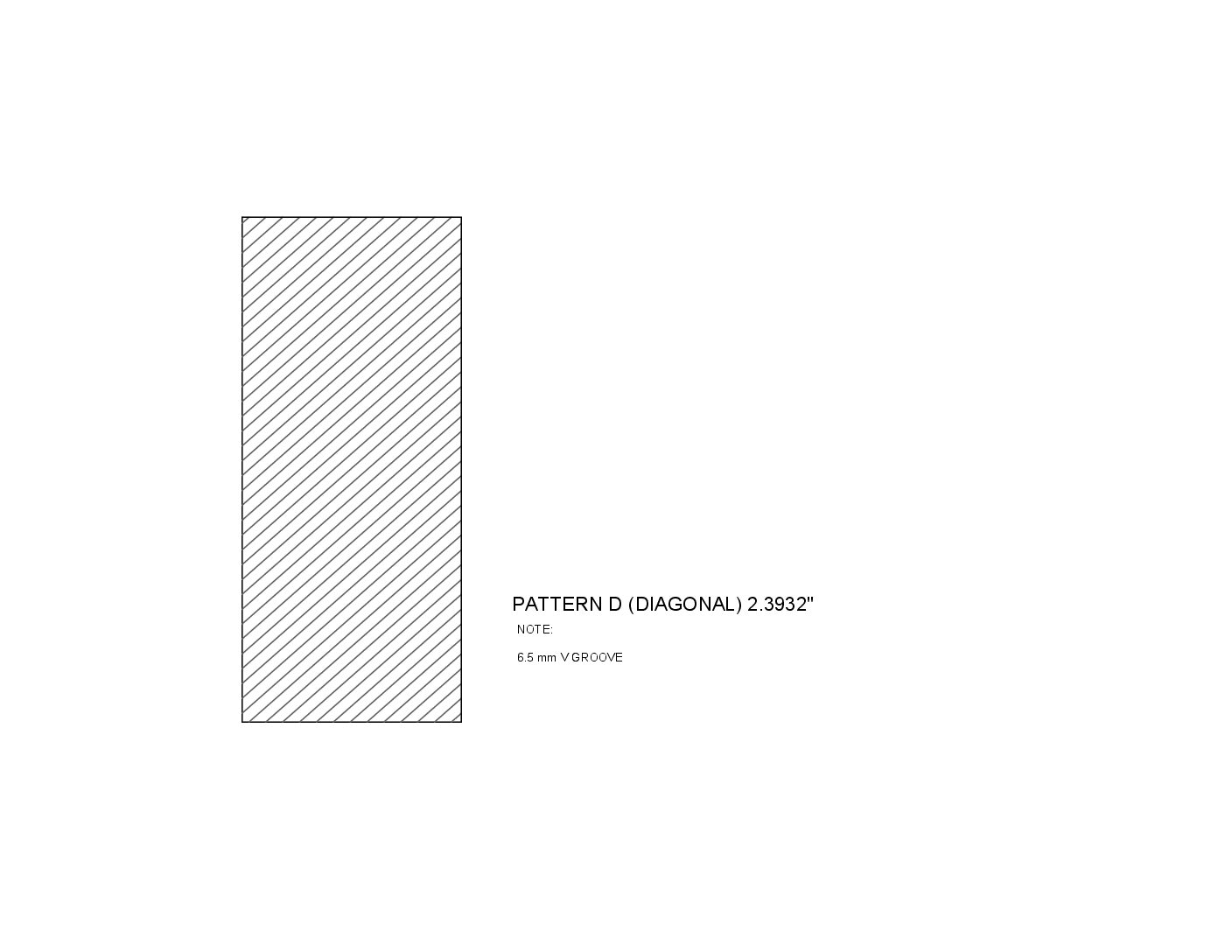

Pattern D

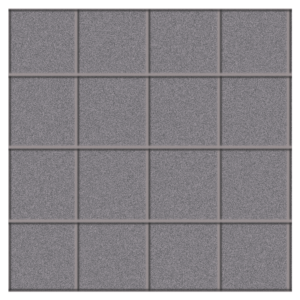

Pattern E

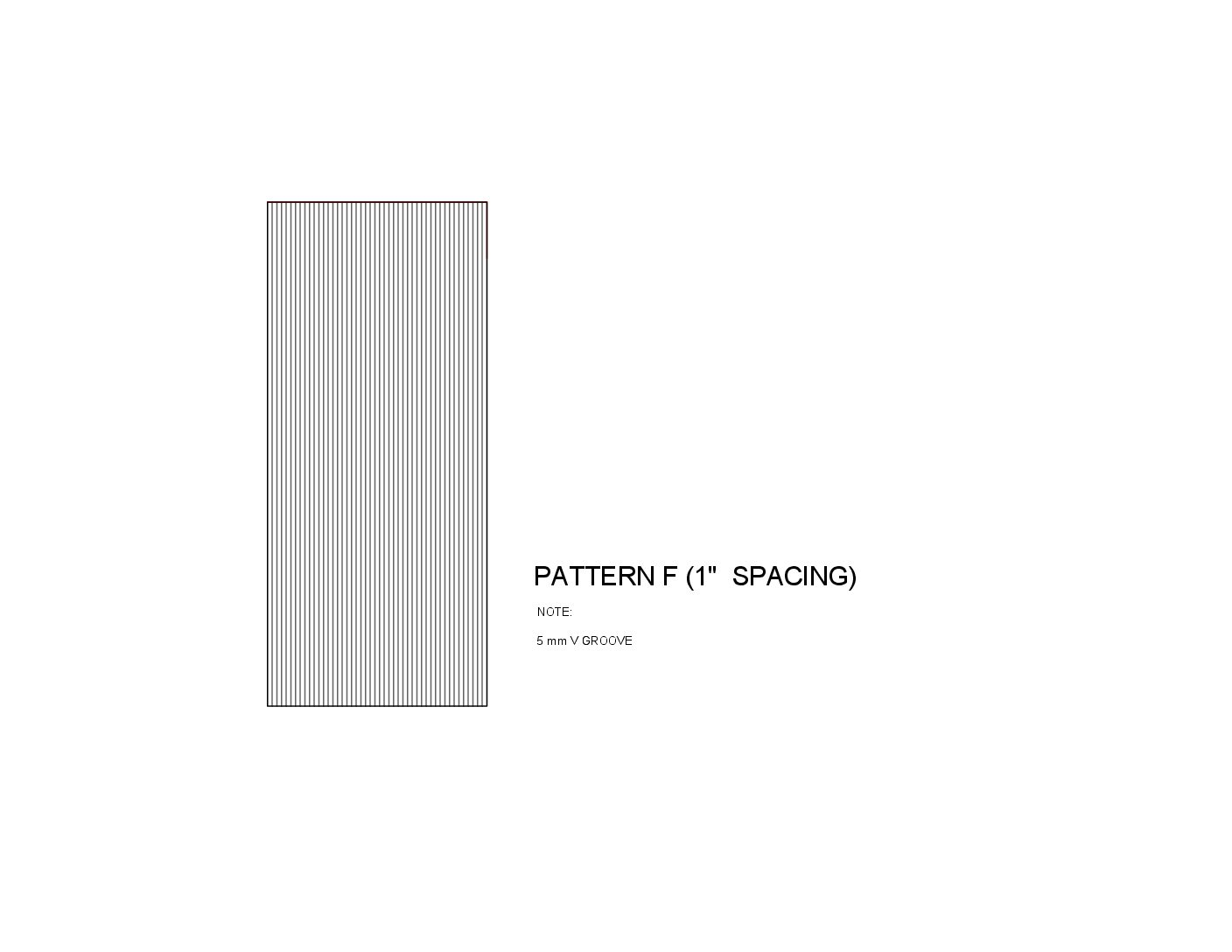

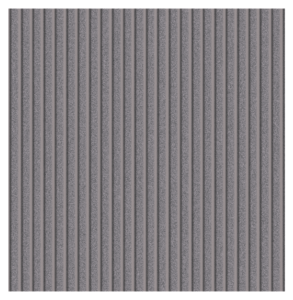

Pattern F

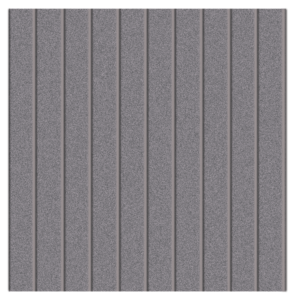

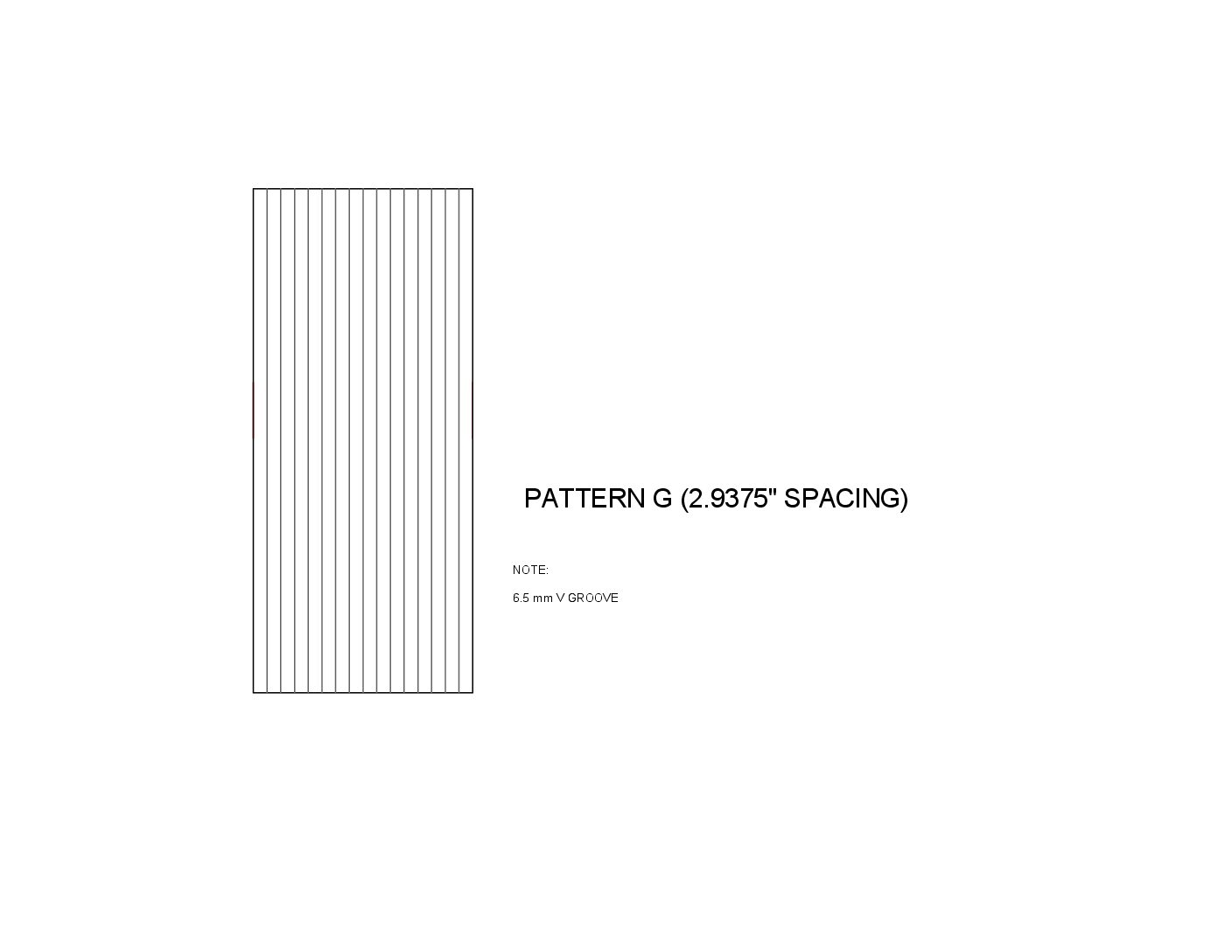

Pattern G

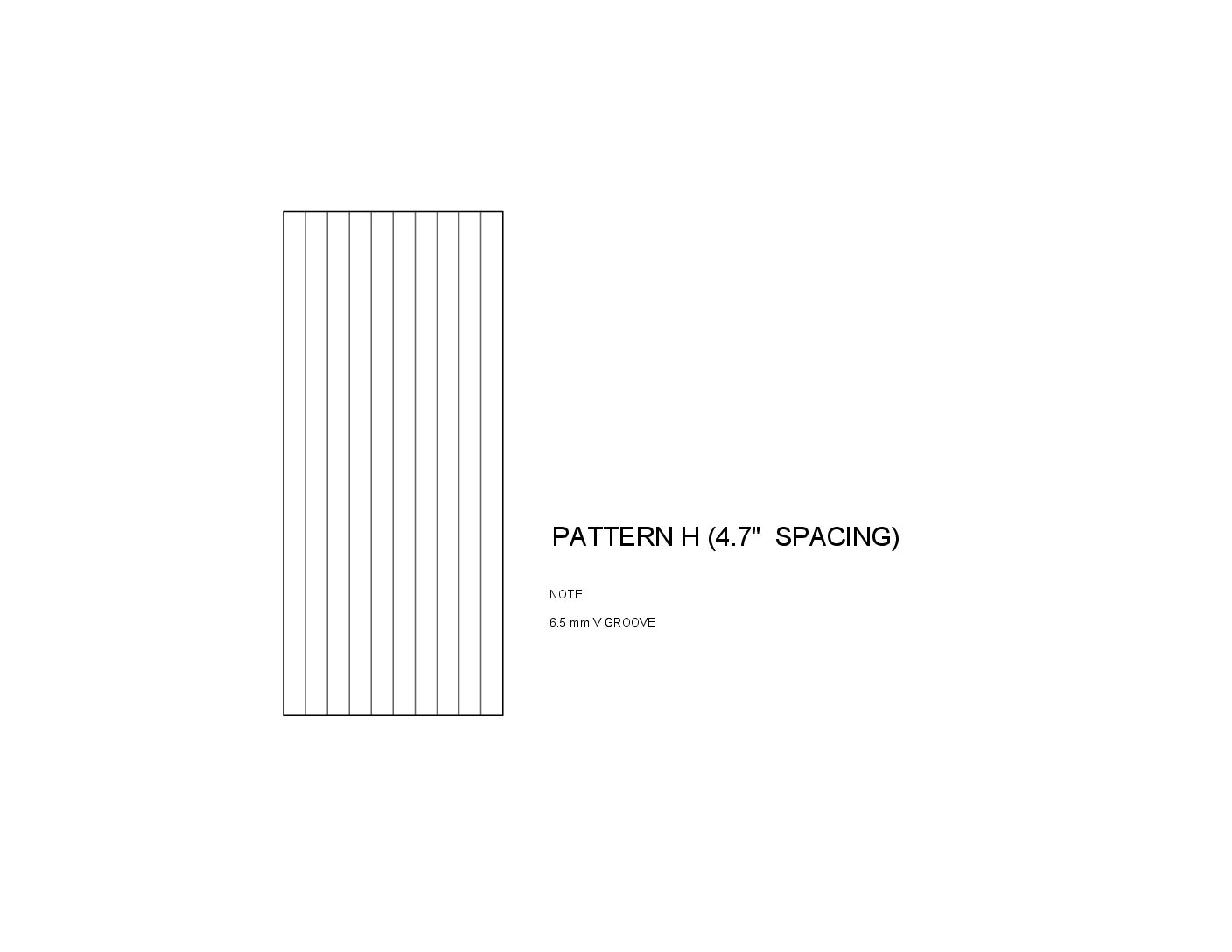

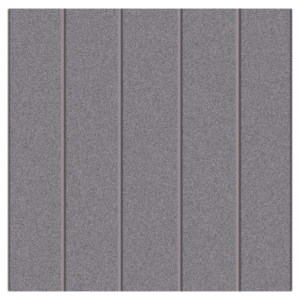

Pattern H

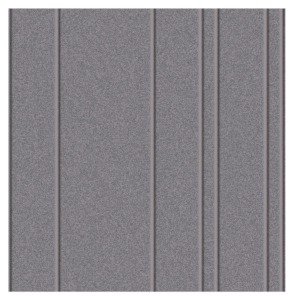

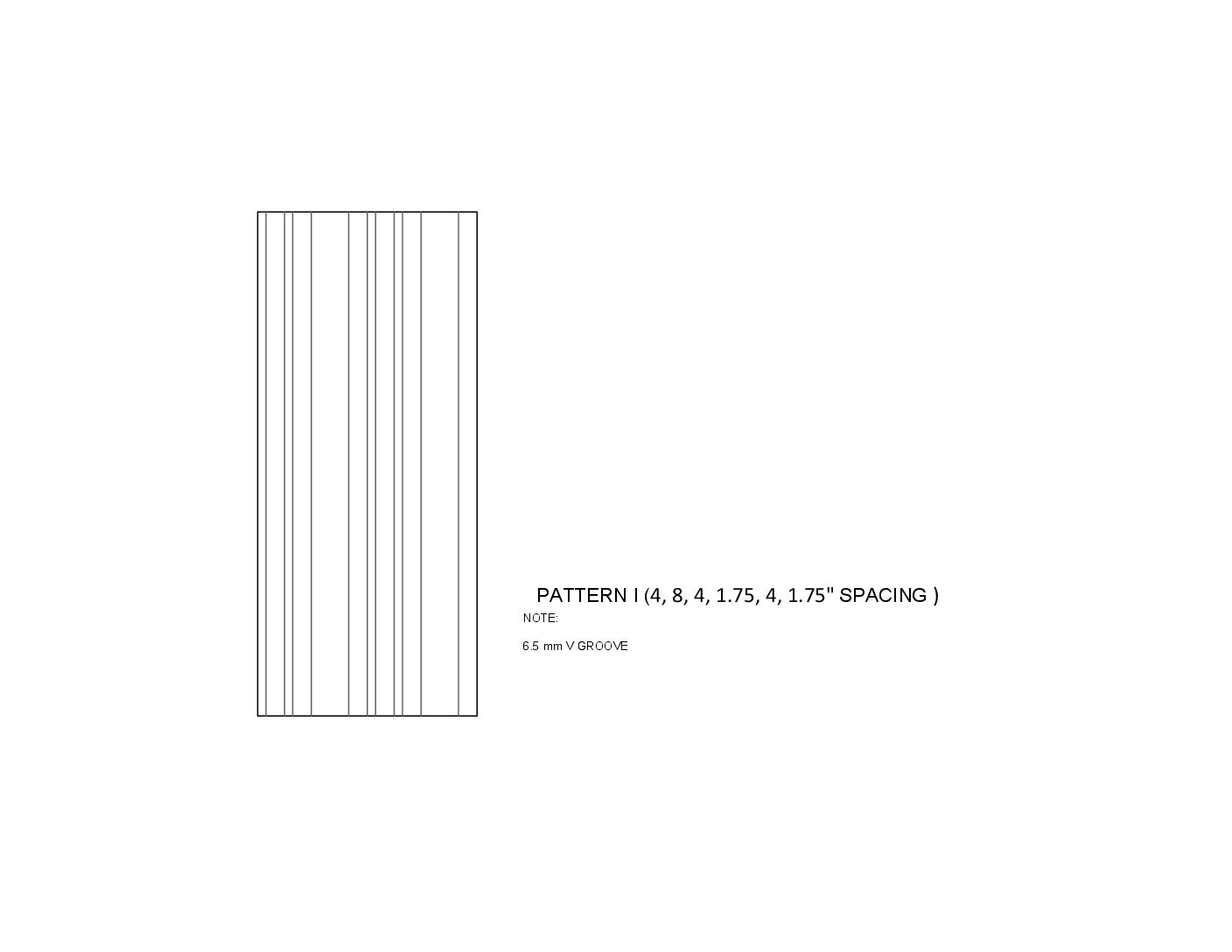

Pattern I

SO Colors

SO-01

SO-02

SO-03

SO-04

SO-05

SO-06

SO-07

SO-08

SO-09

SO-10

SO-11

SO-12

SO-13

SO-14

SO-15

SO-16

SO-17

SO-18

SO-19

SO-20

SO-21

SO-22

SO-23

SO-24

SO-25

SO-26

SO-27

SO-28

SO-29

SO-30

SO-31

SO-32

SO-33

SO-34

SO-35

SO-36

SO-37

SO-38

SO-39

SO-40

SO-41

SO-42

SO-43

SO-44

SO-45

SO-46

SO-47

SO-48

SO-49

SO-50

SO-51

SO-52

SO-53

SO-54

SO-55

SO-56

SO-57

SO-58

SO-59

SO-60

SO-61

SO-62

SO-63

SO-64

SO-65

SO-66

SO-67

SO-68

SO-69

SO-70

SO-71

SO-72

SO-73

SO-75

SO-77

SO-78

SO-79

SO-80

SO-82

SO-83

SO-84

SO-85

SO-86

SO-89

SO-90

SO-91

SO-92

SO-93

SO-94

SO-95

Always request physical samples prior to ordering to ensure color accuracy.

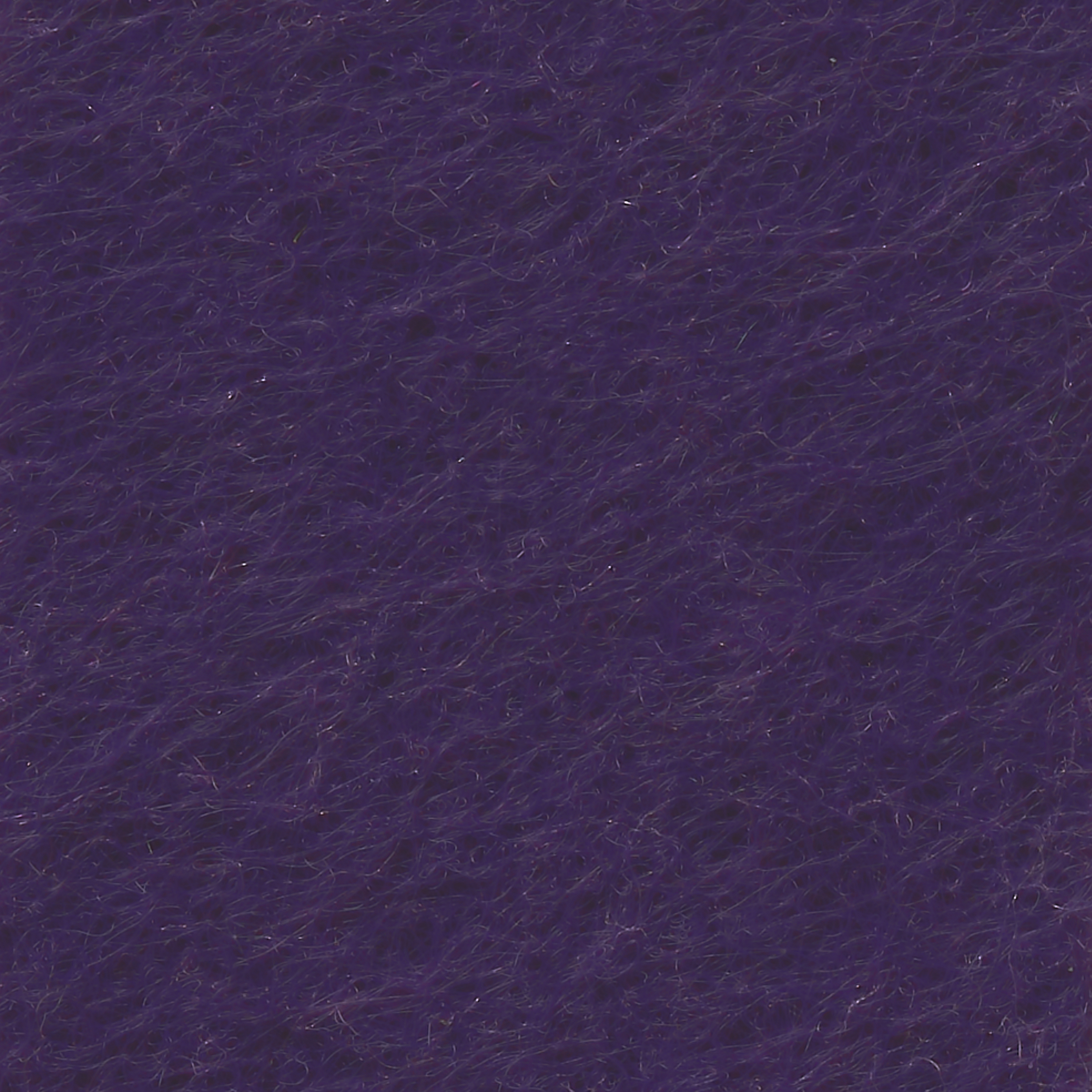

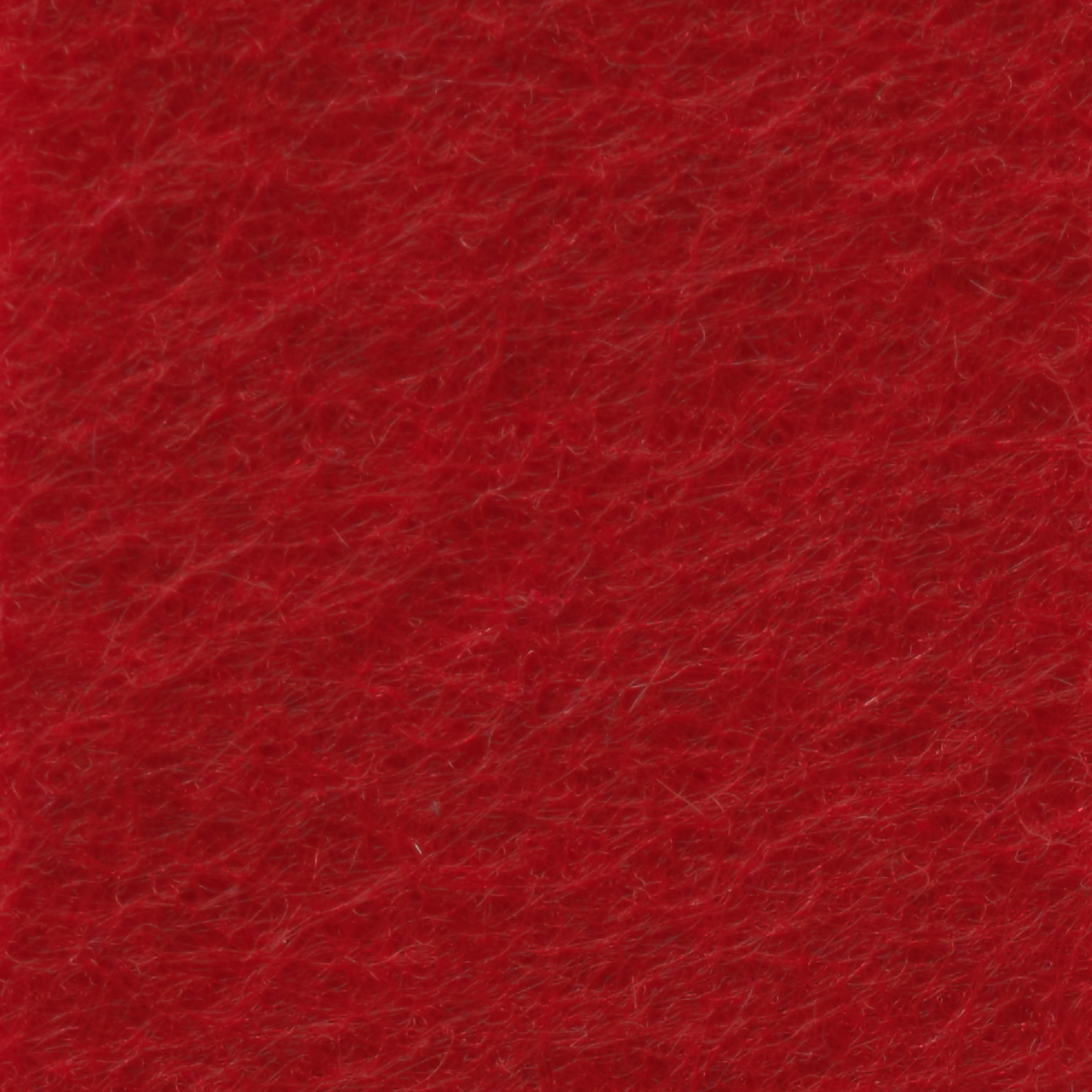

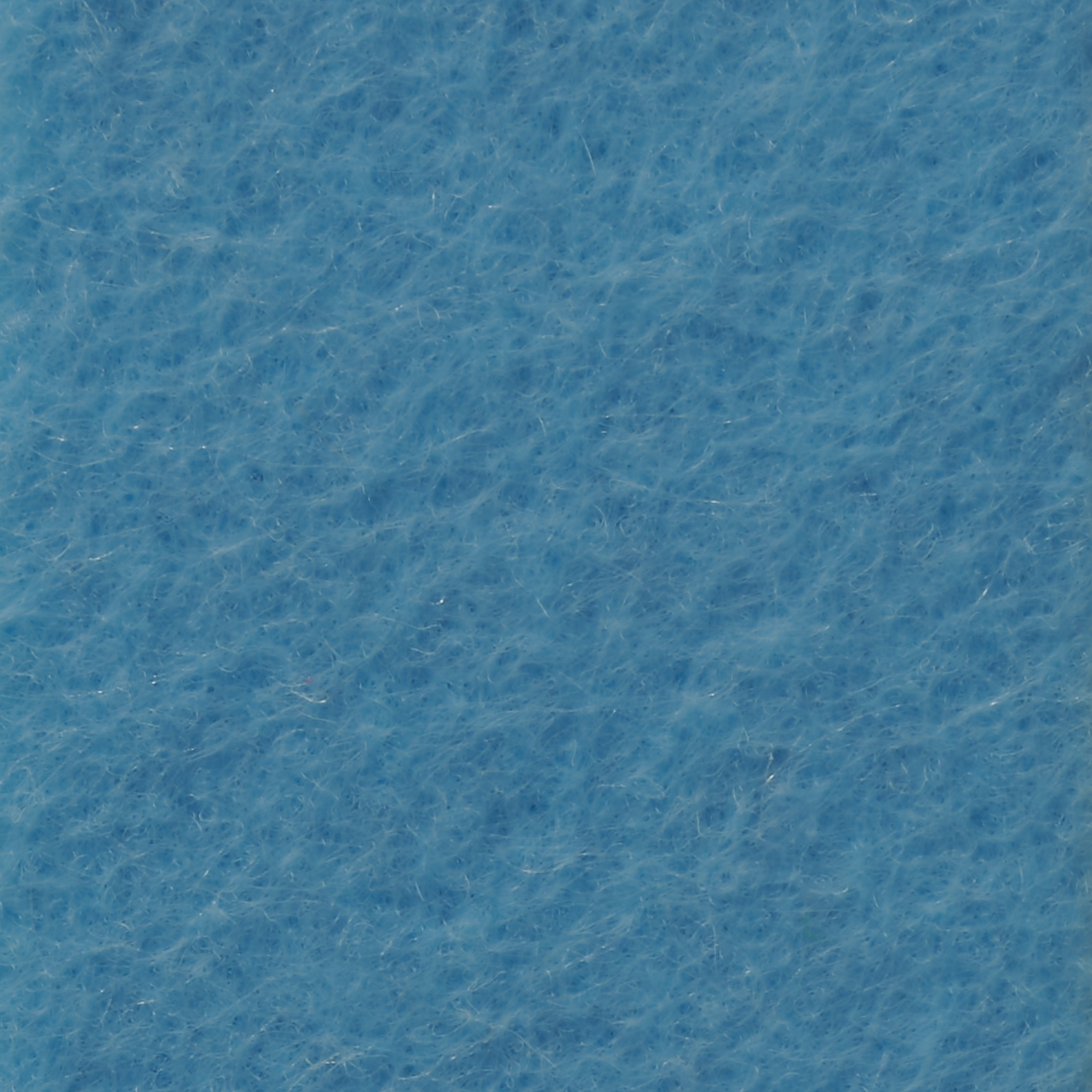

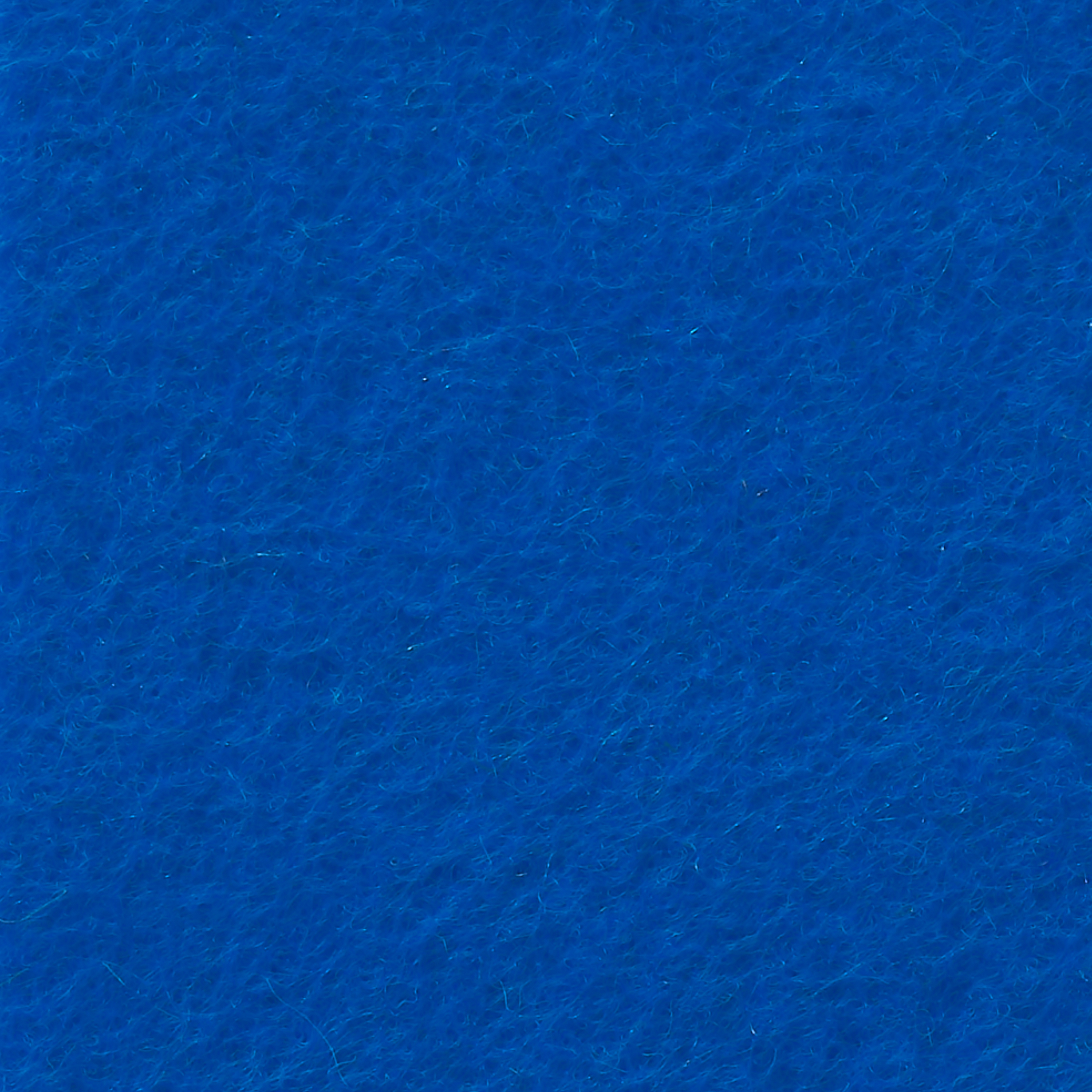

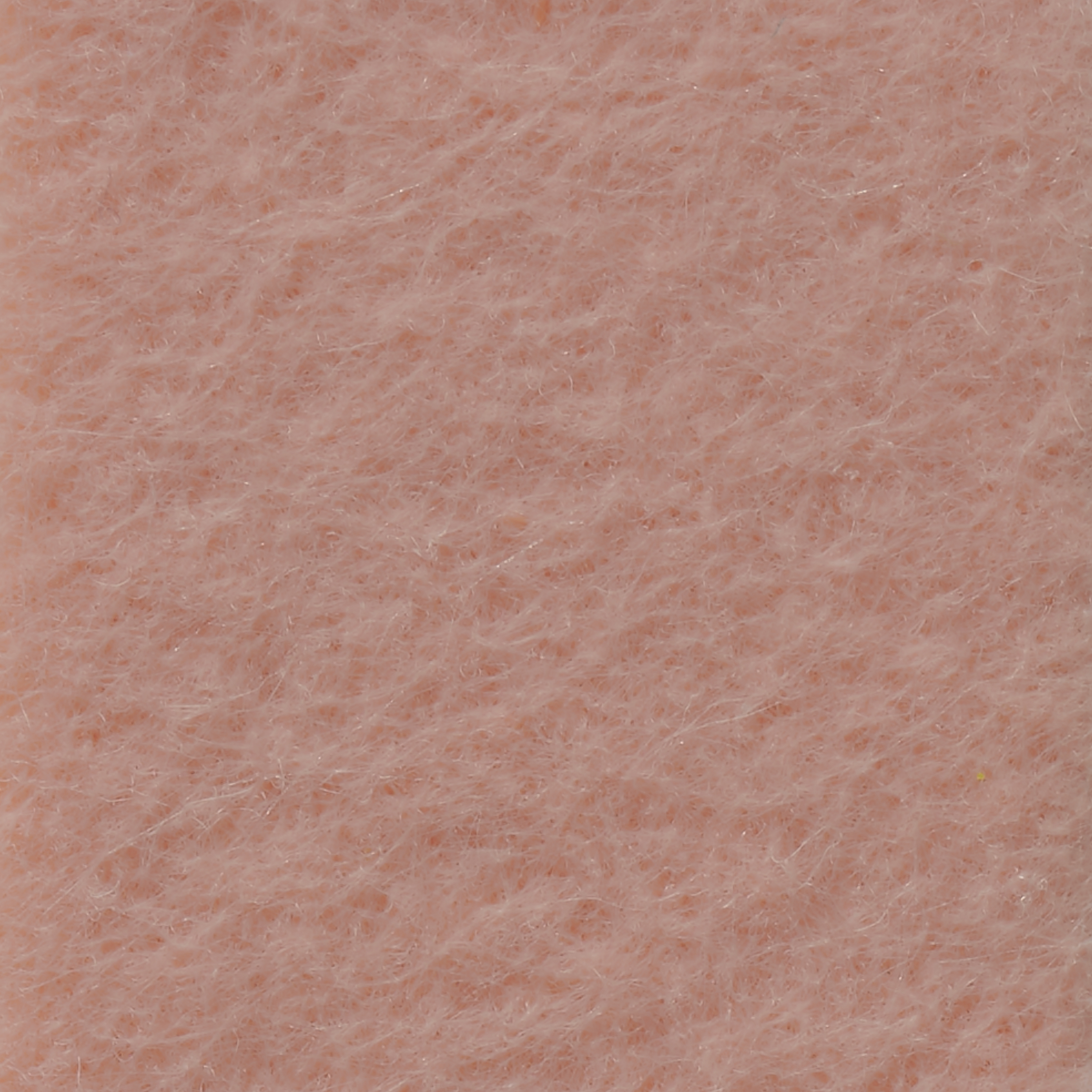

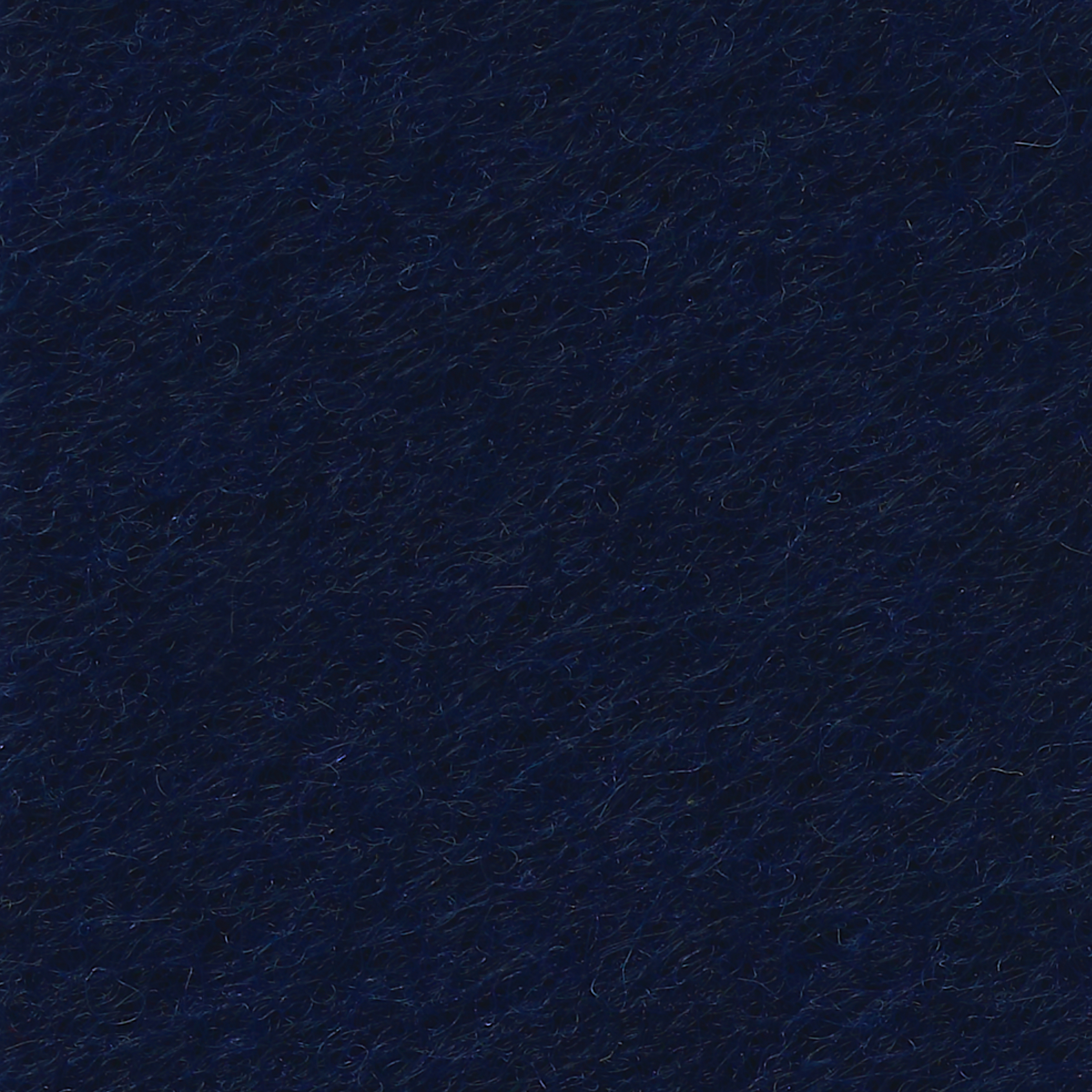

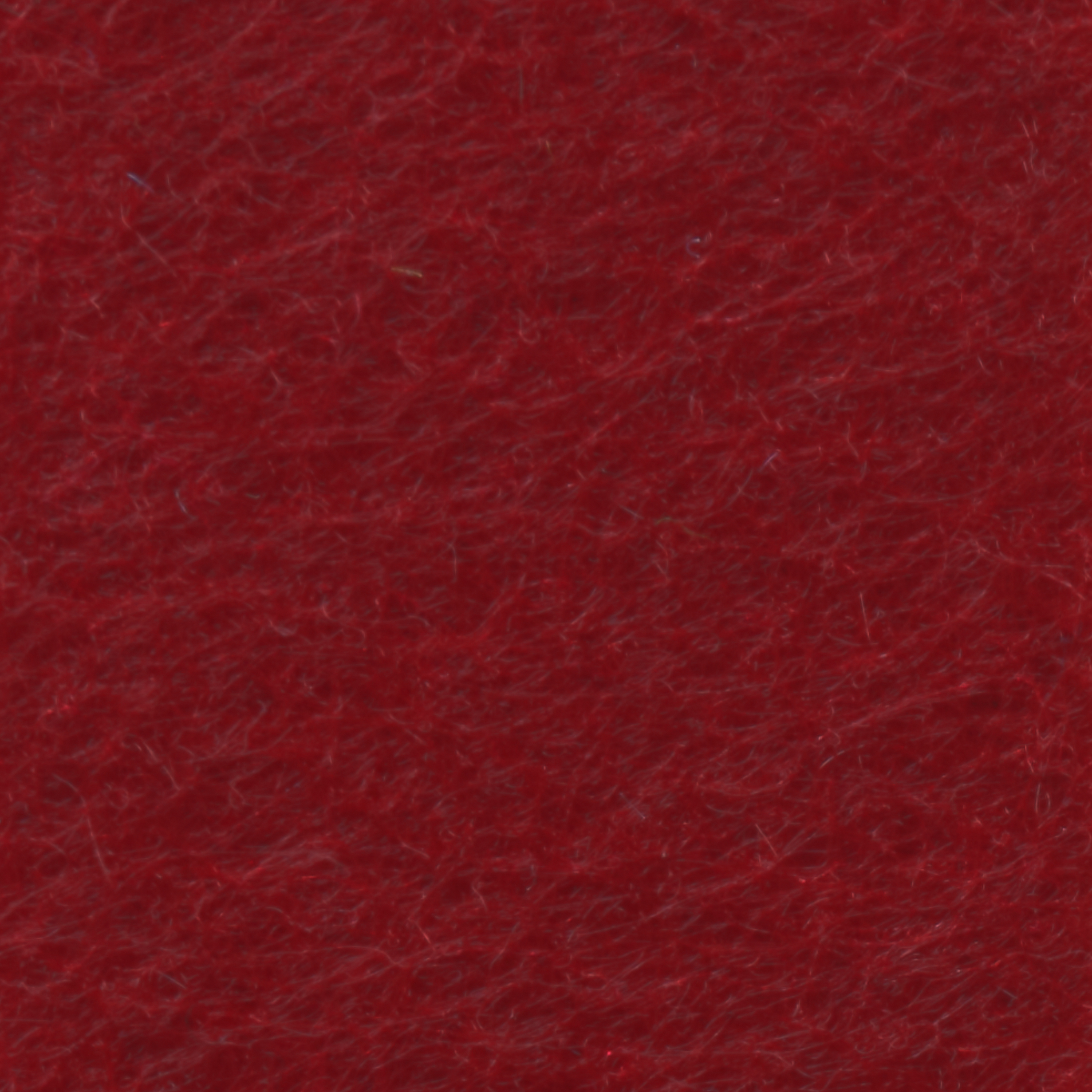

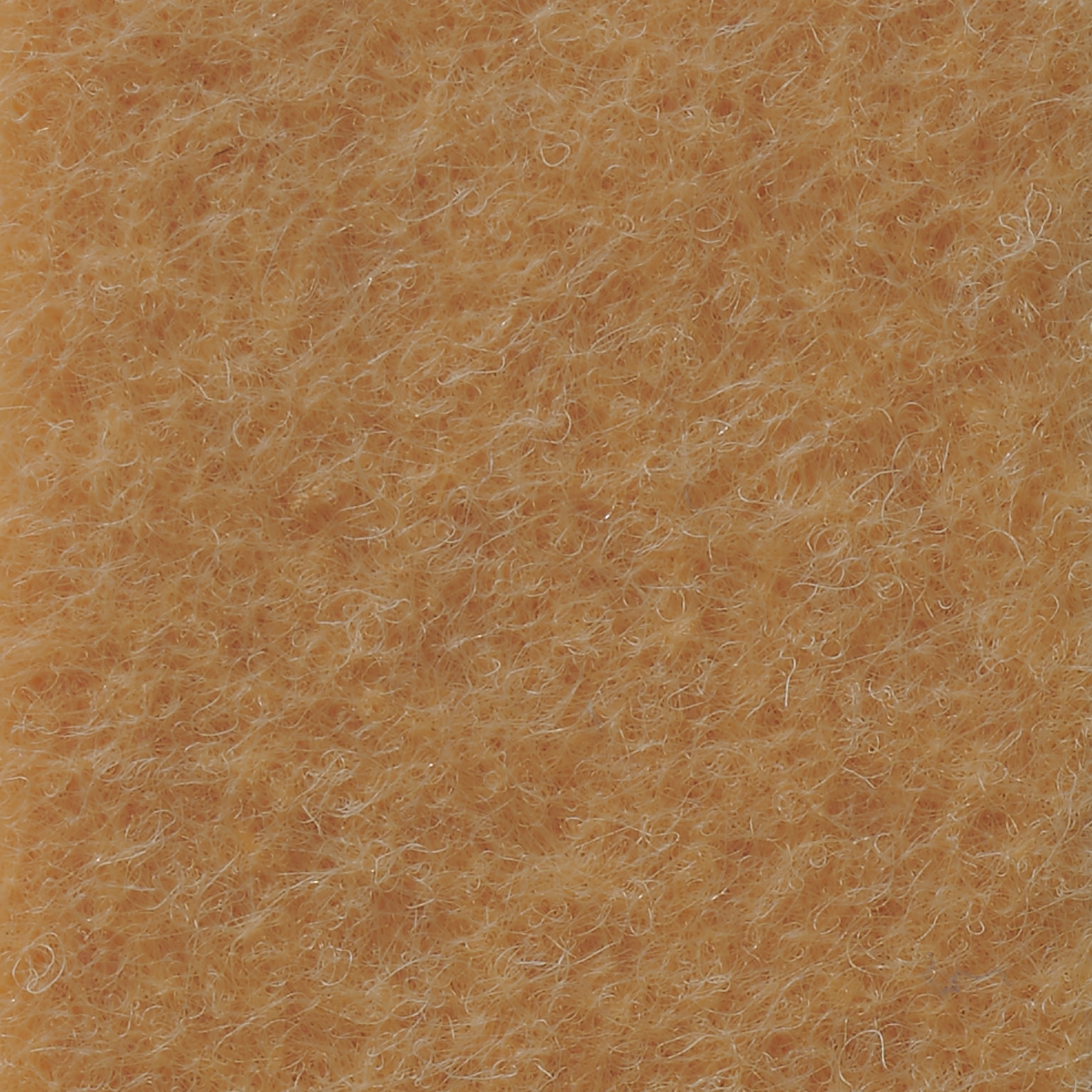

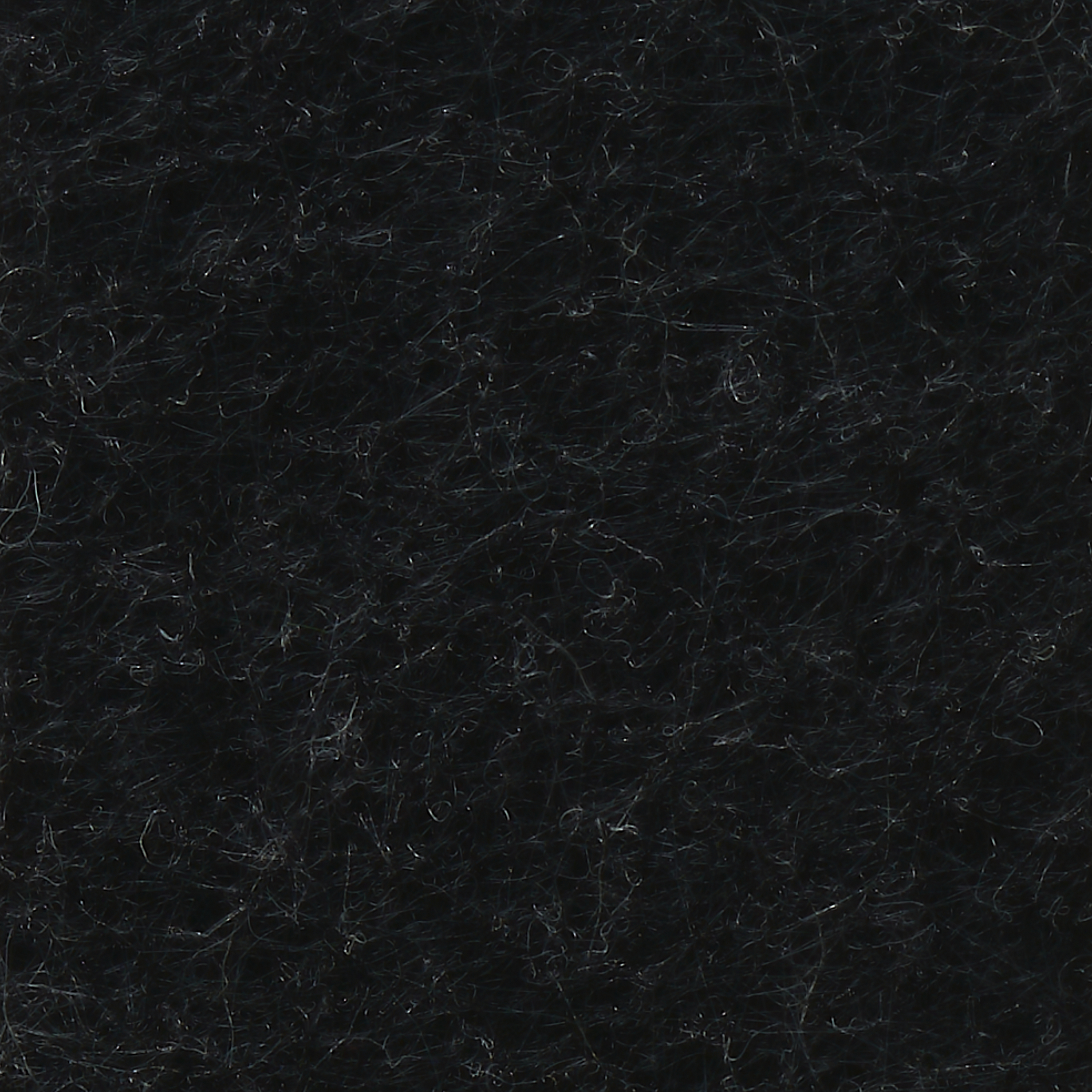

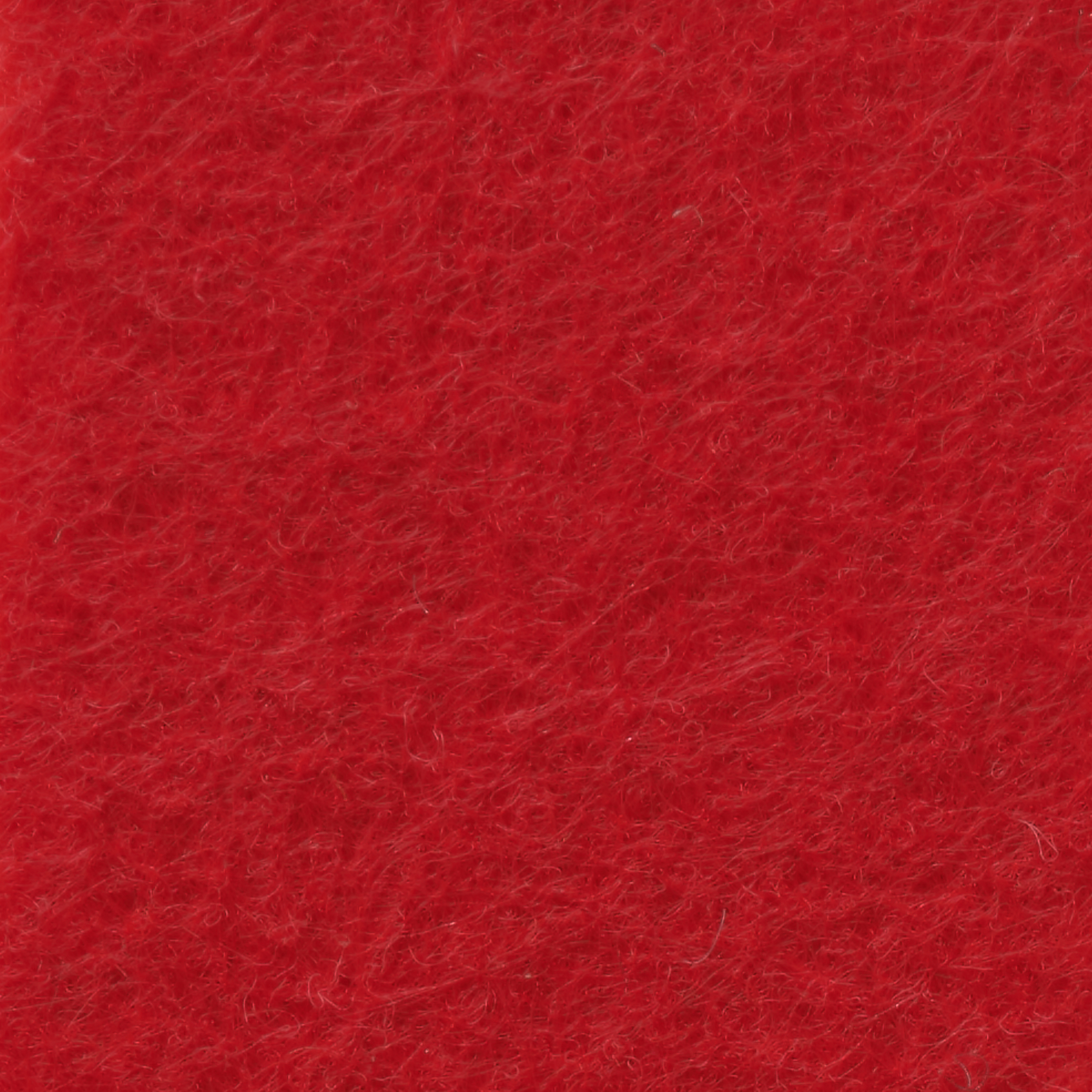

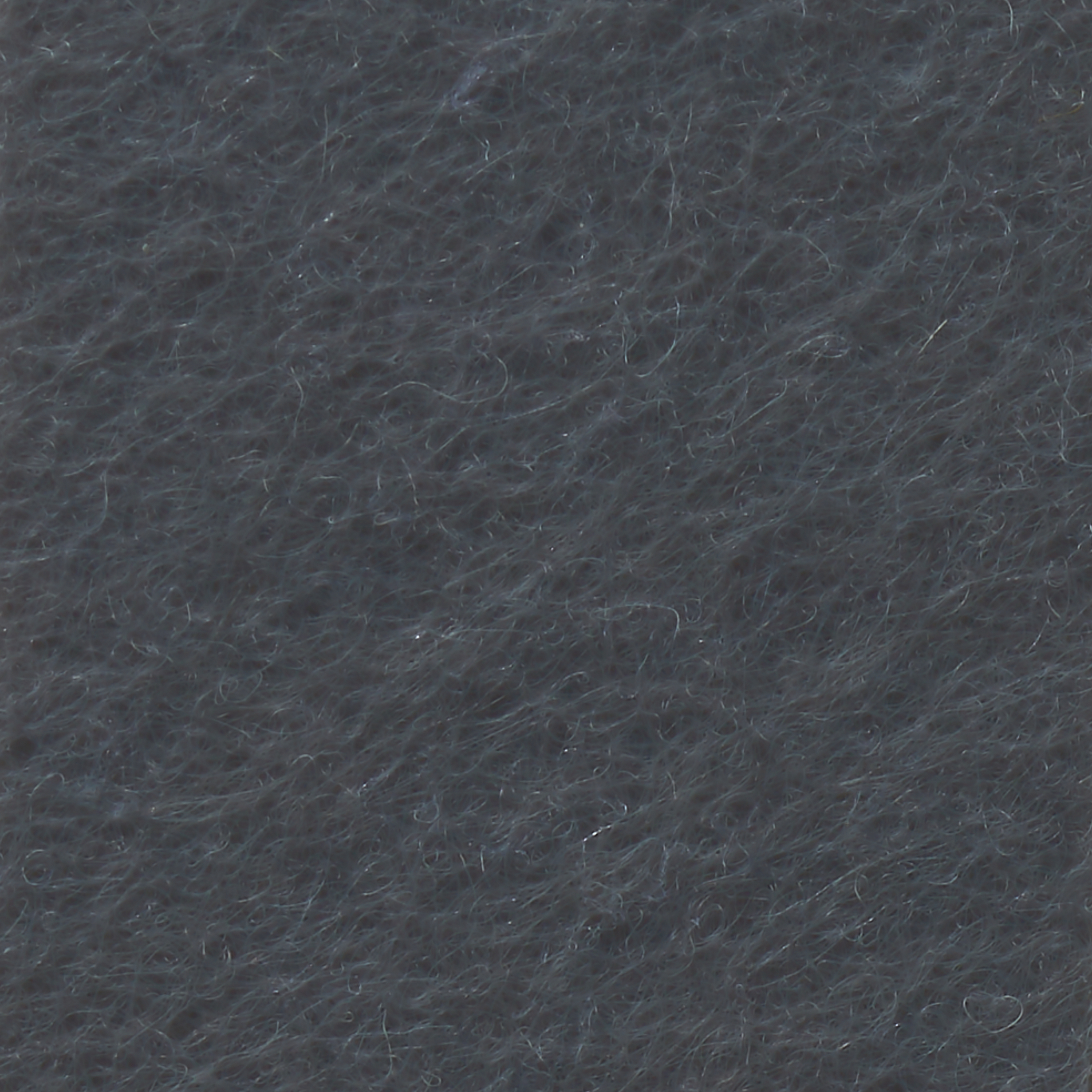

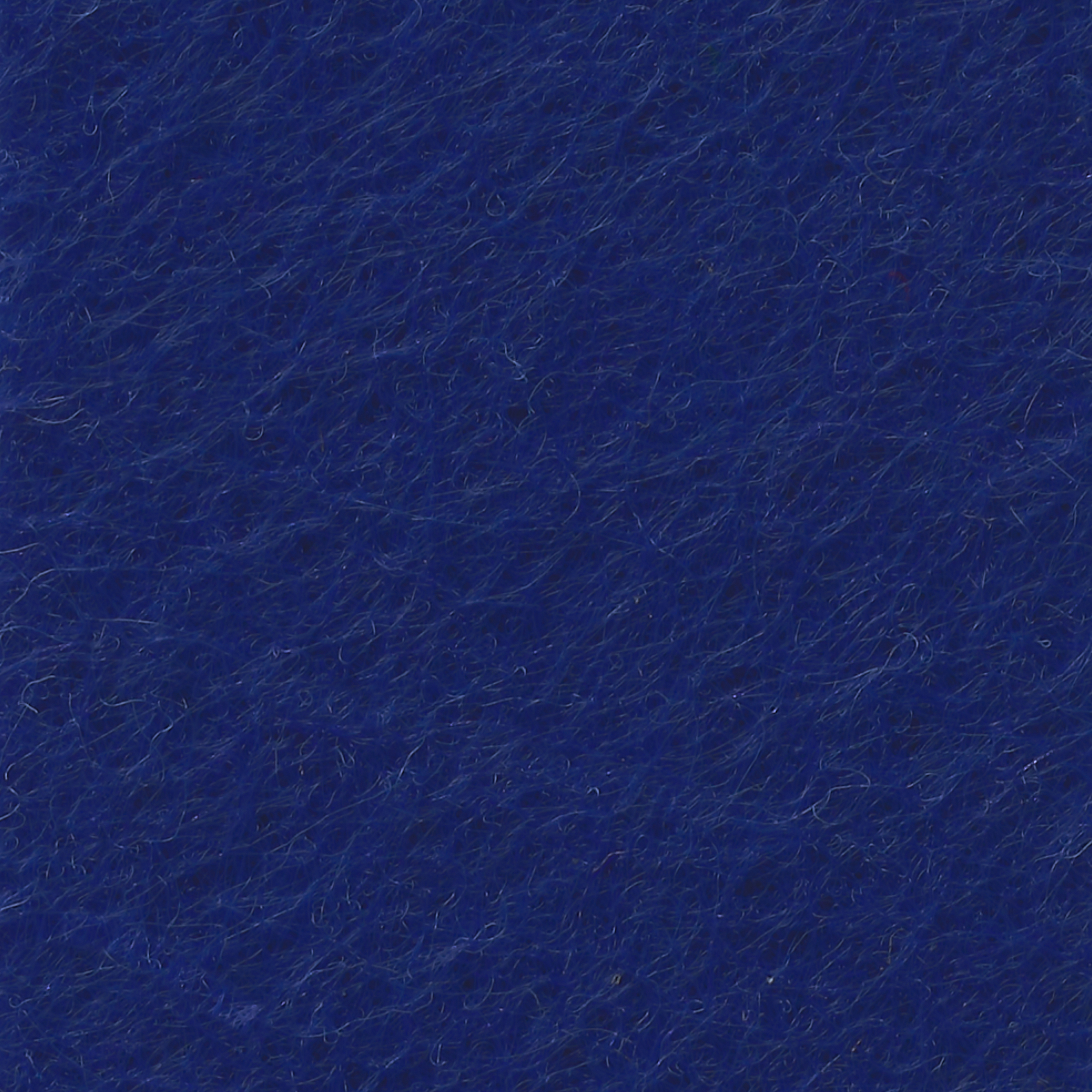

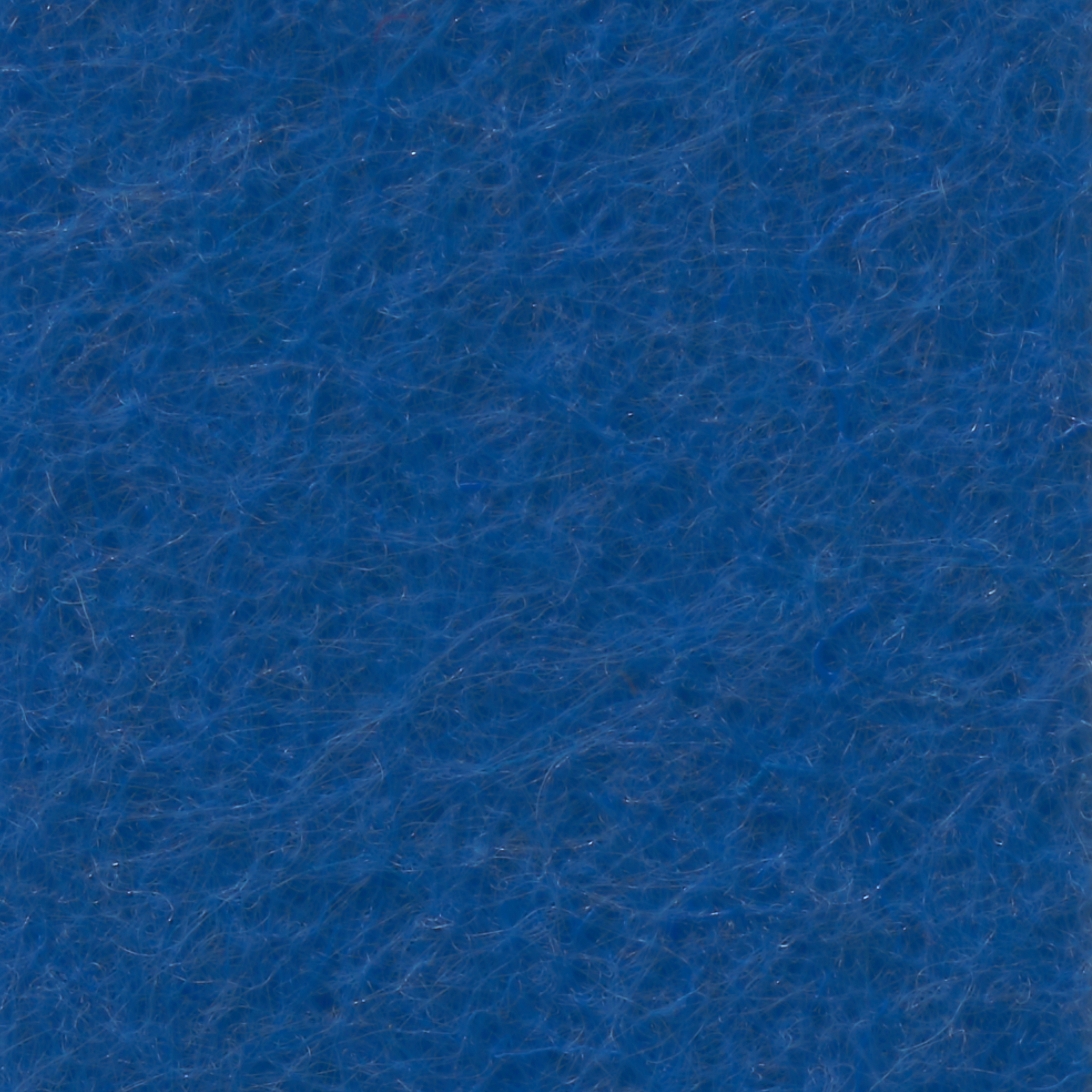

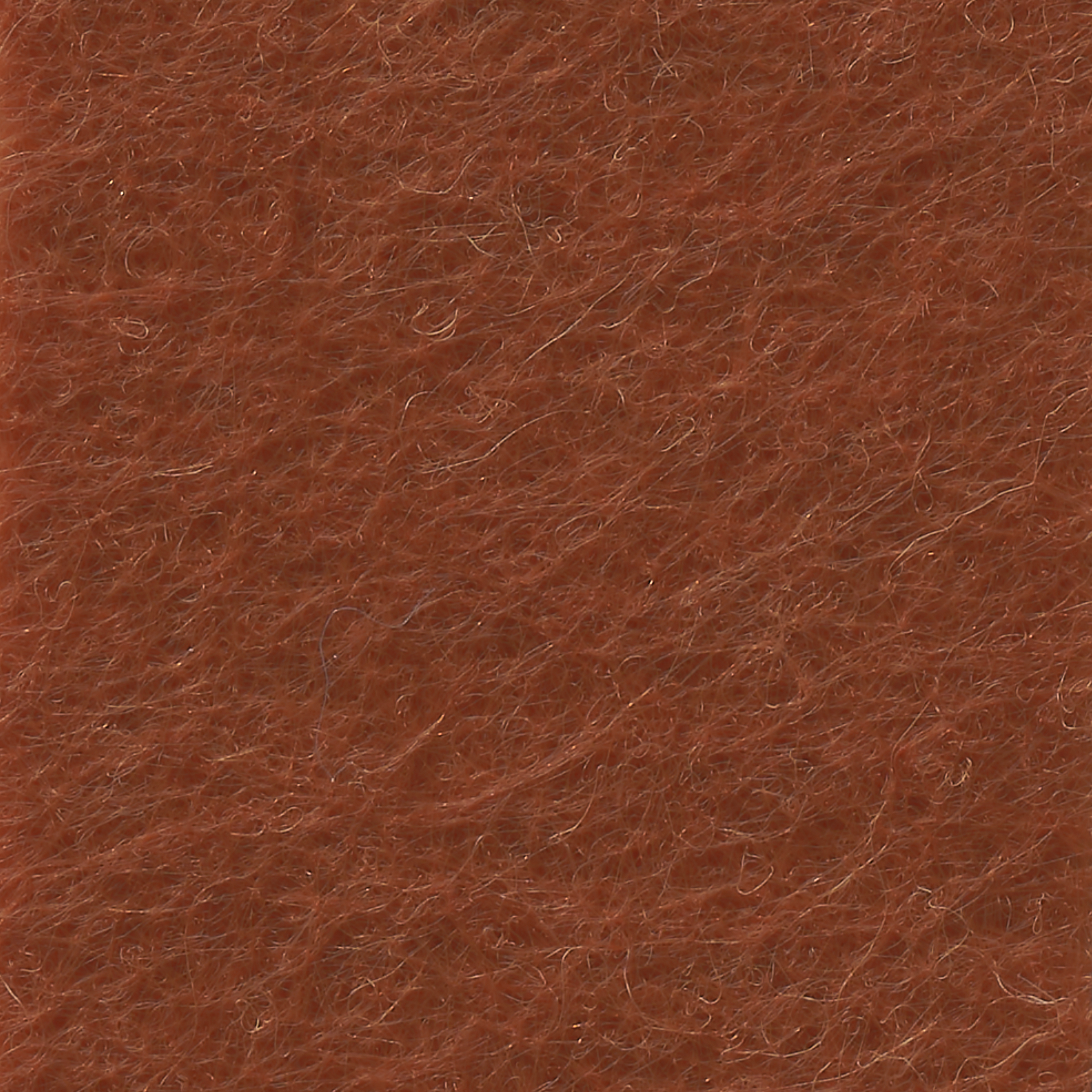

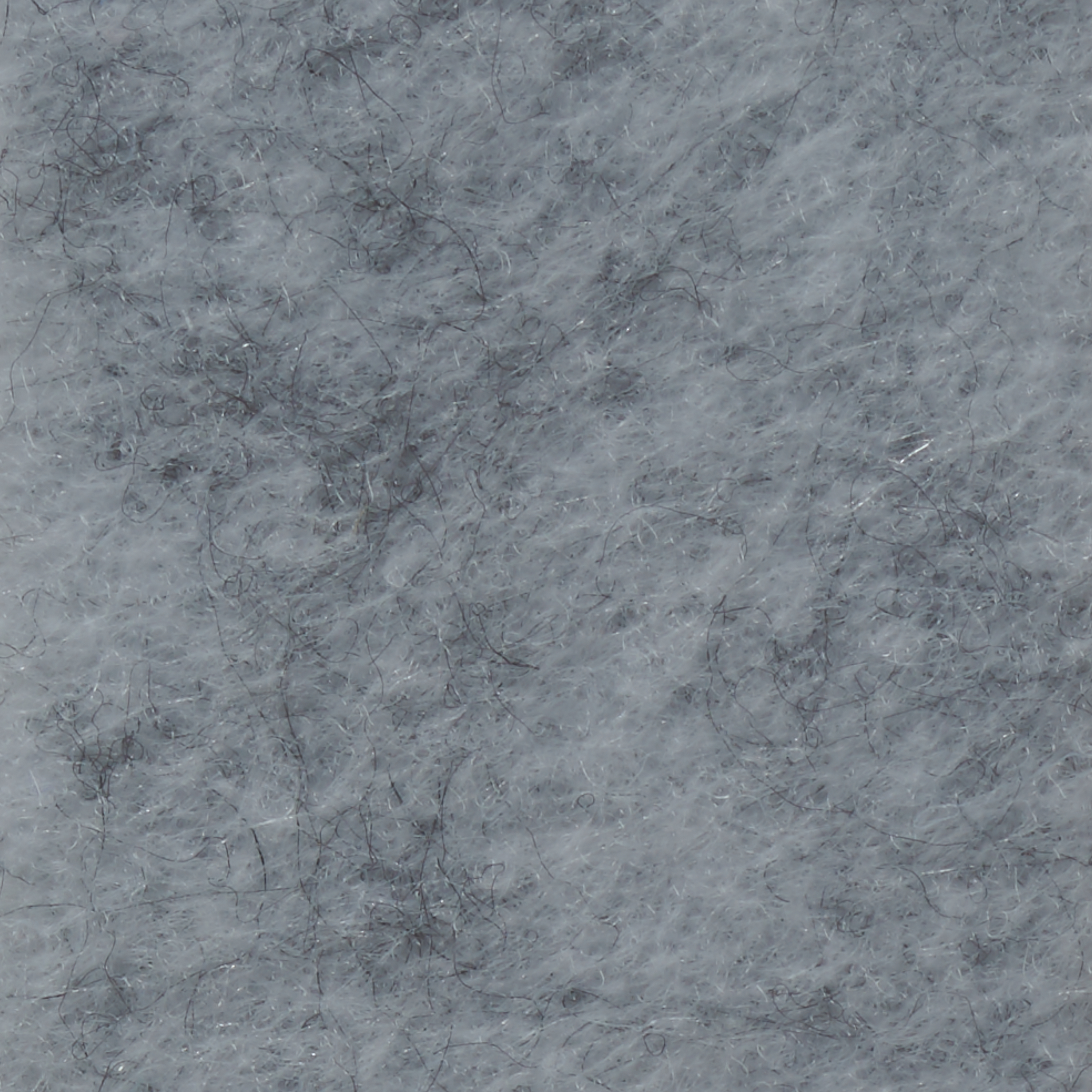

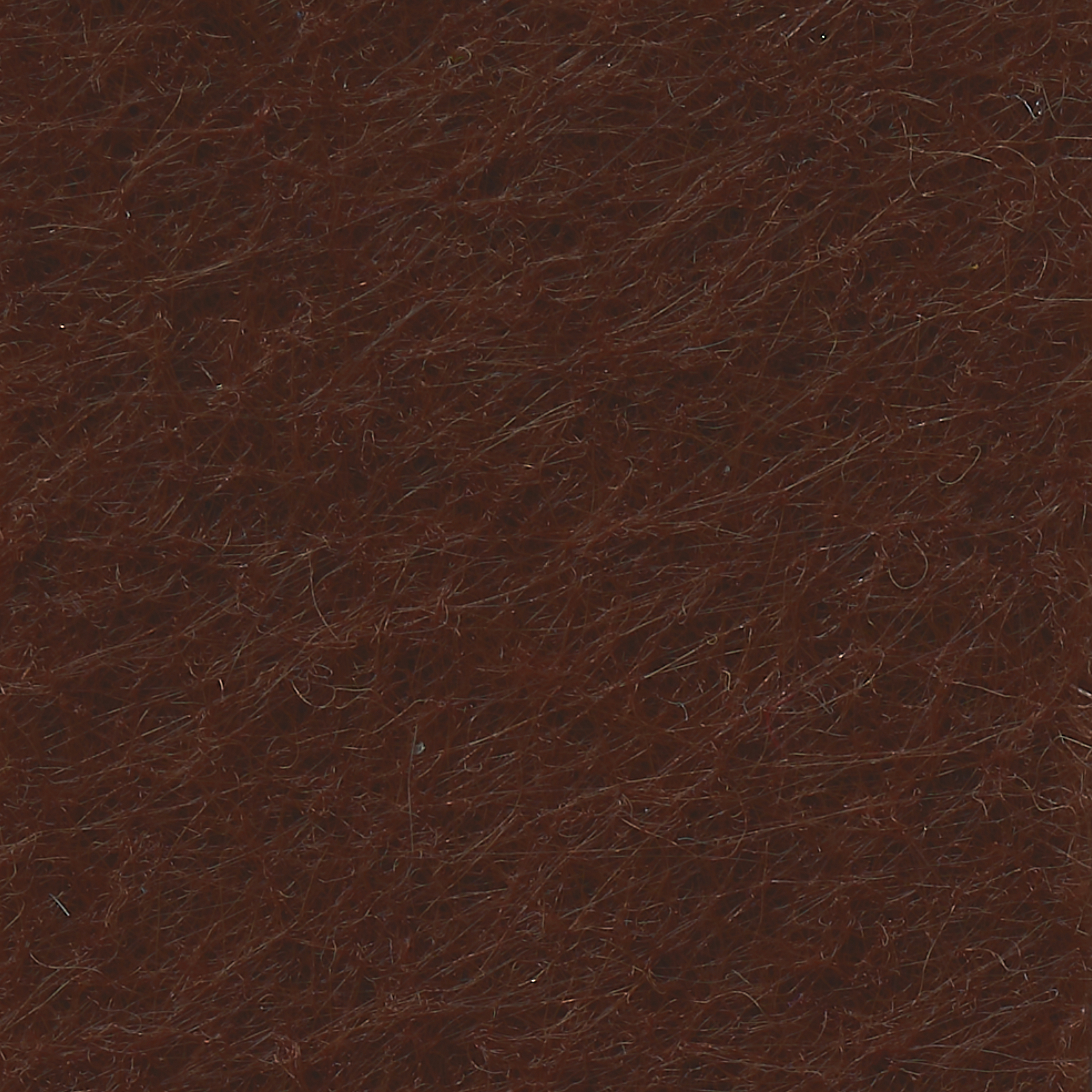

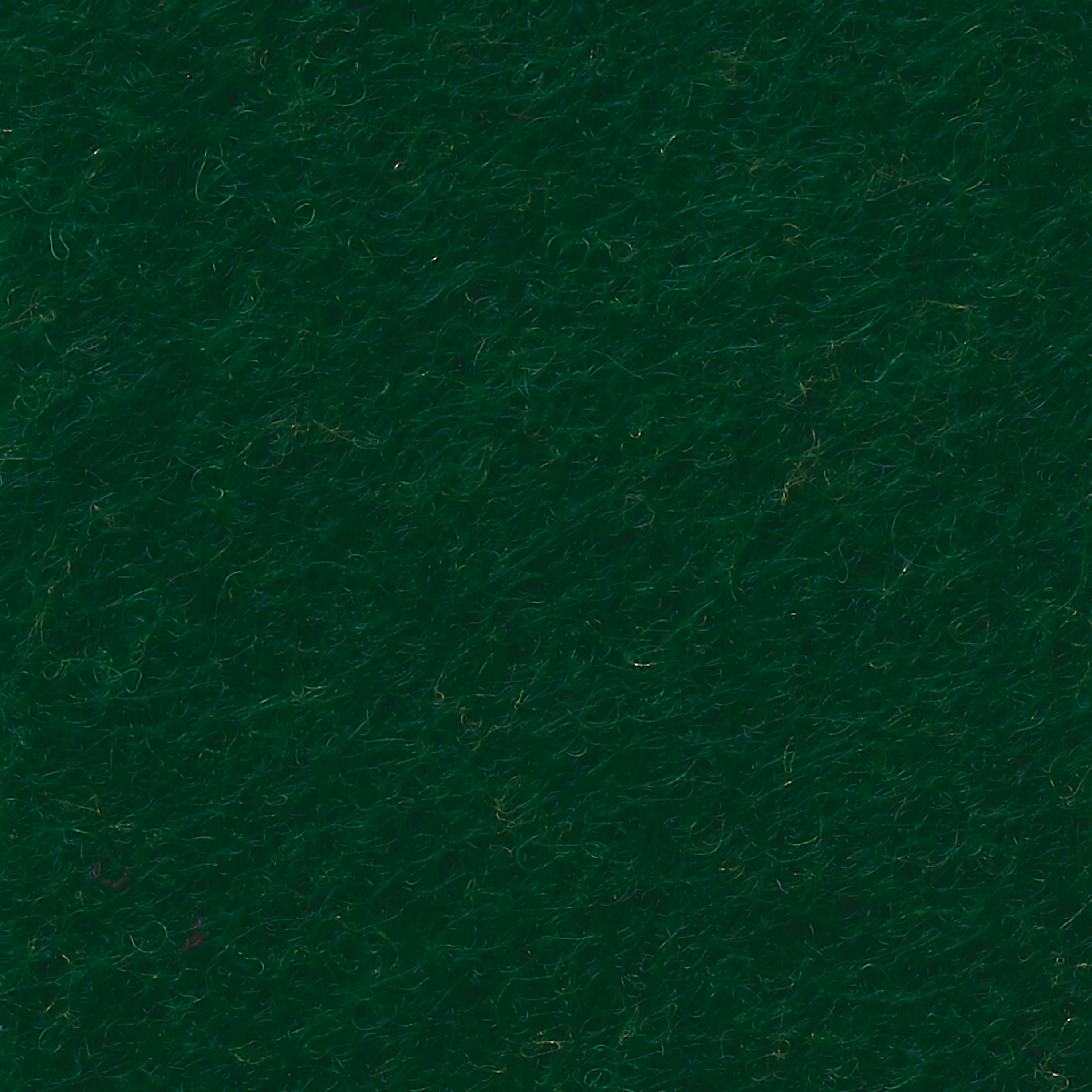

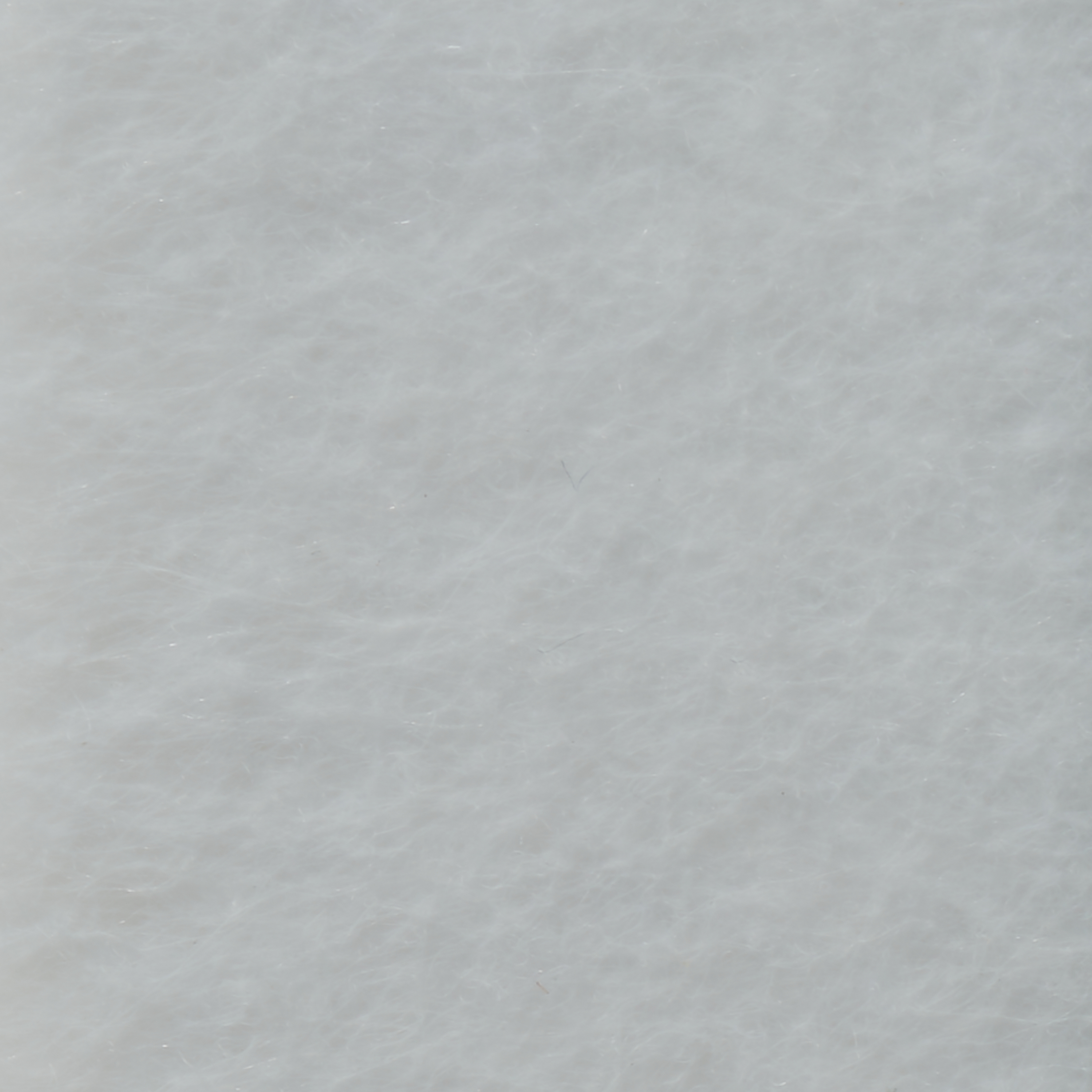

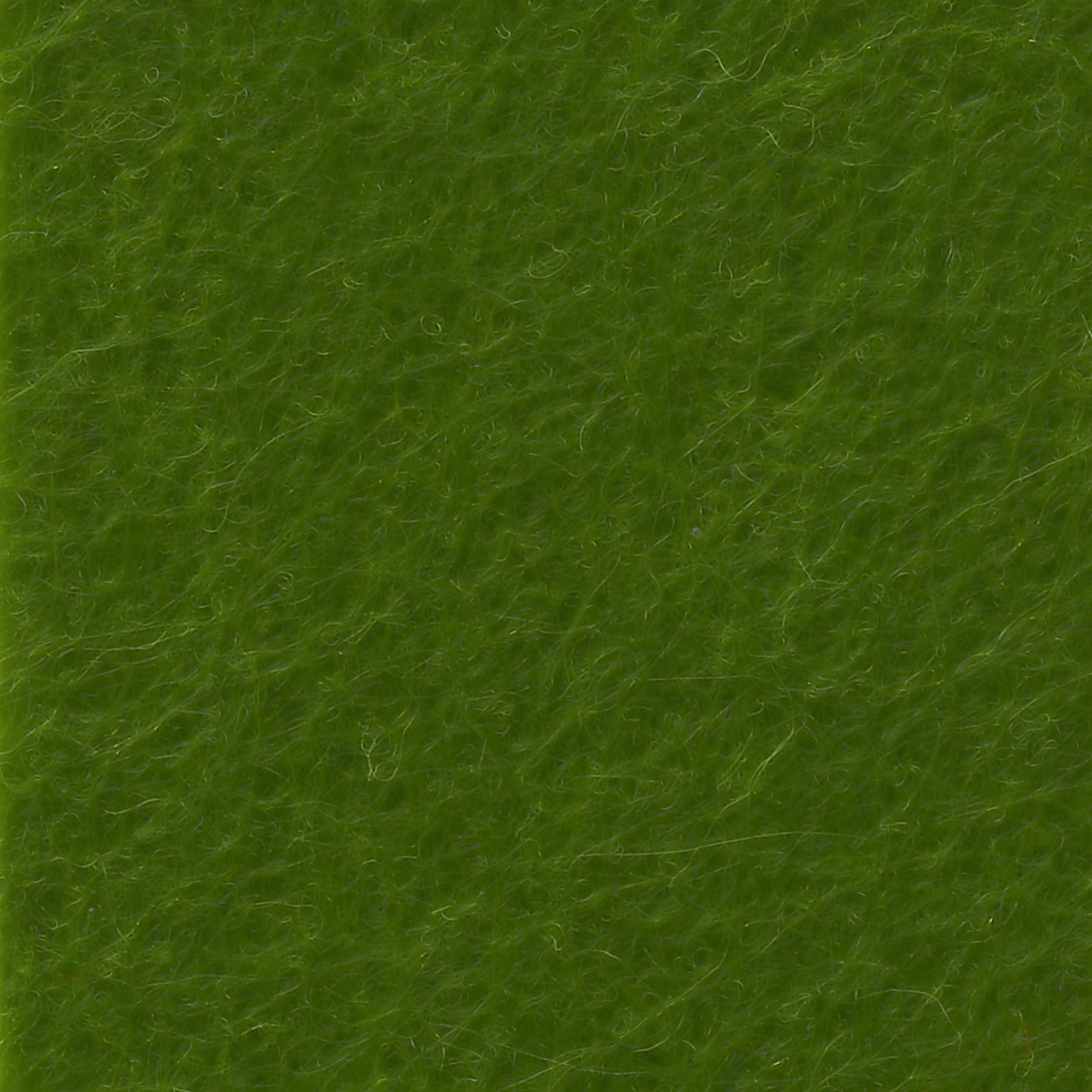

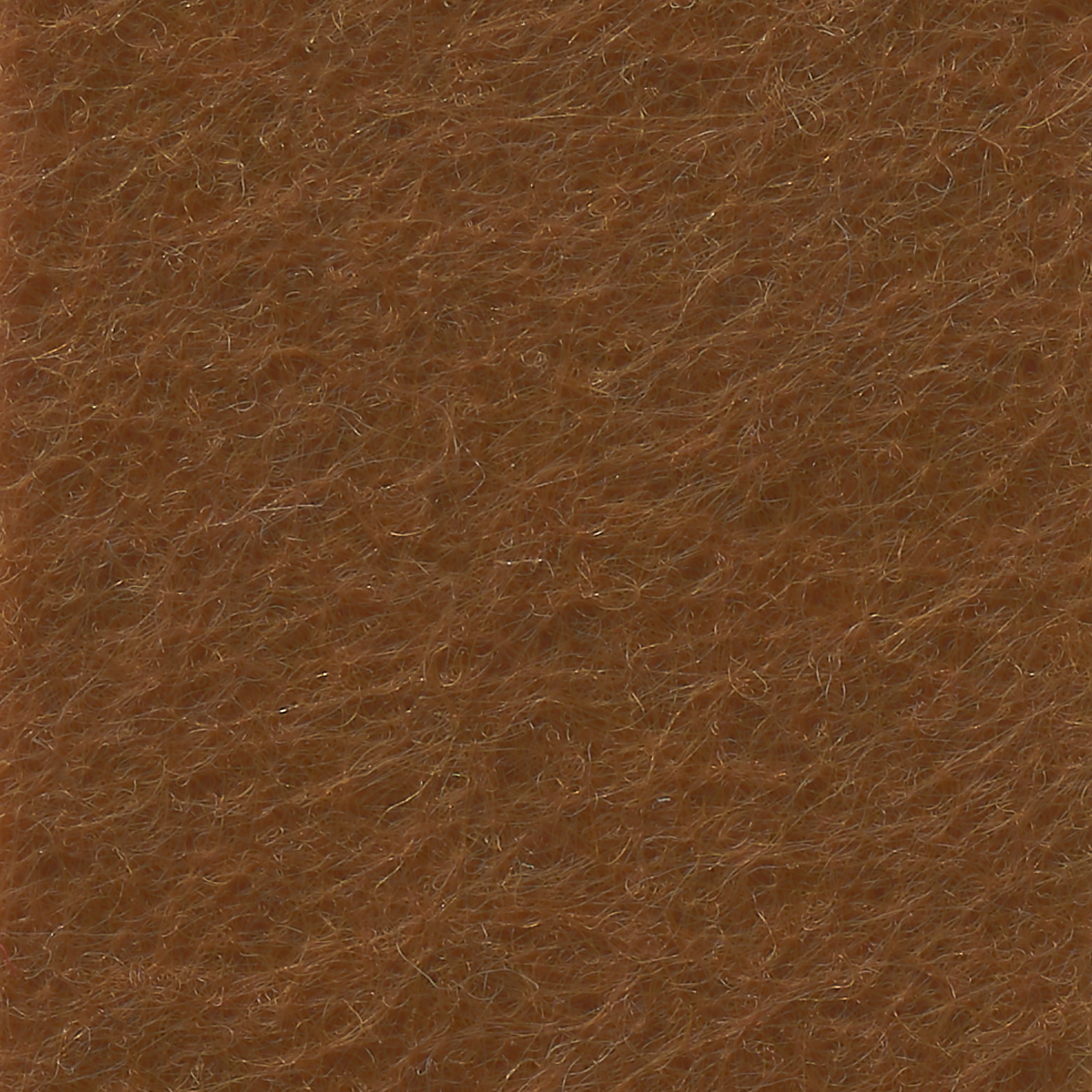

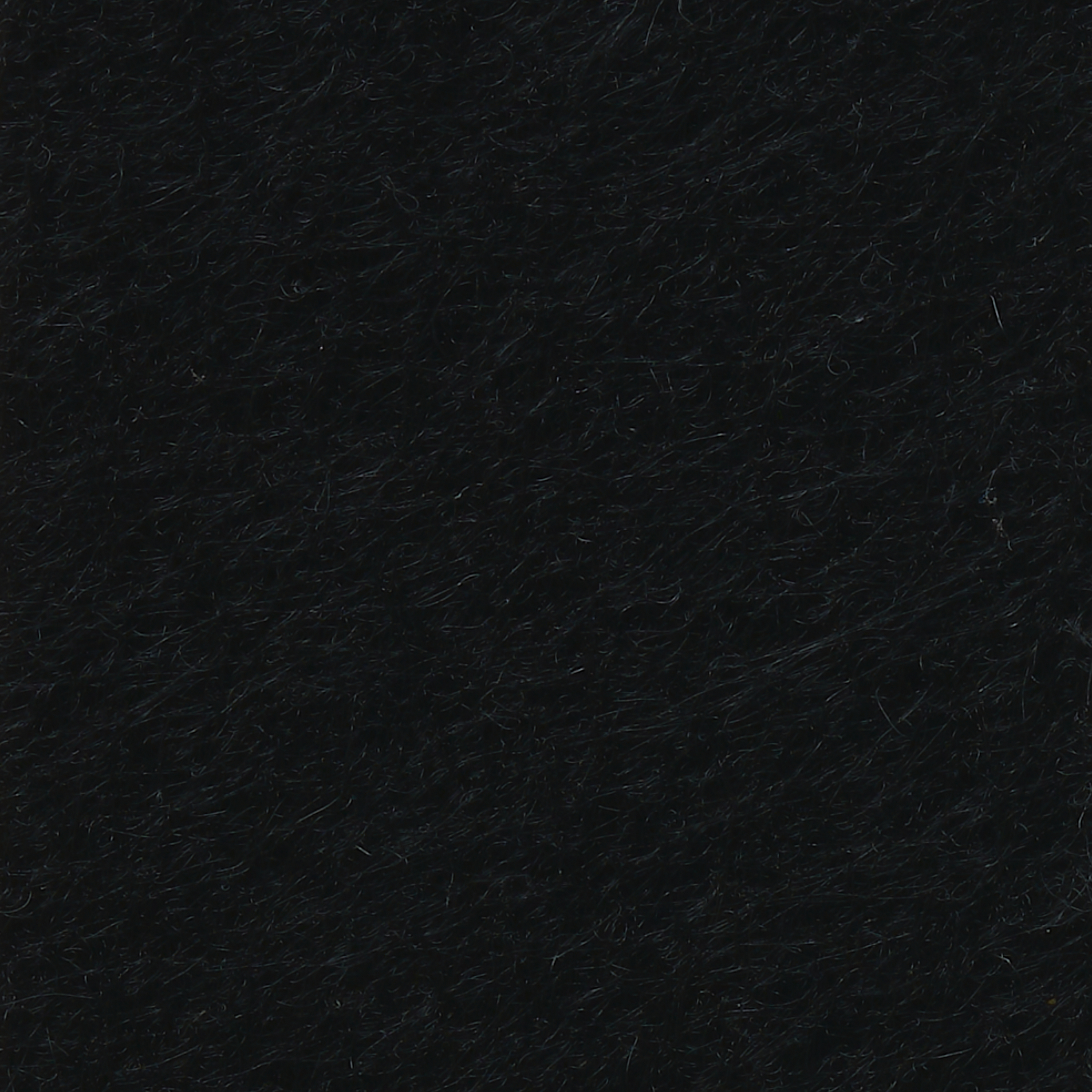

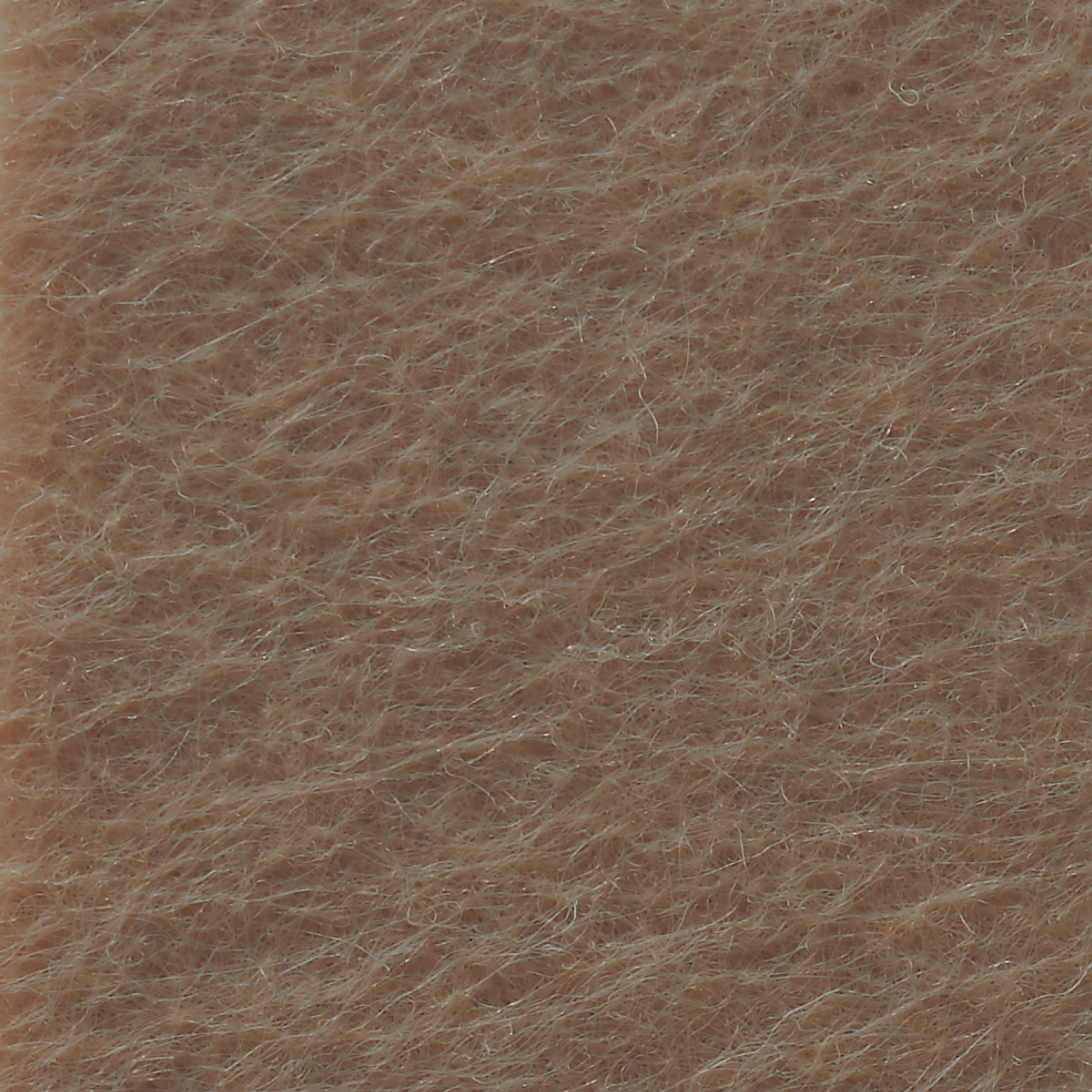

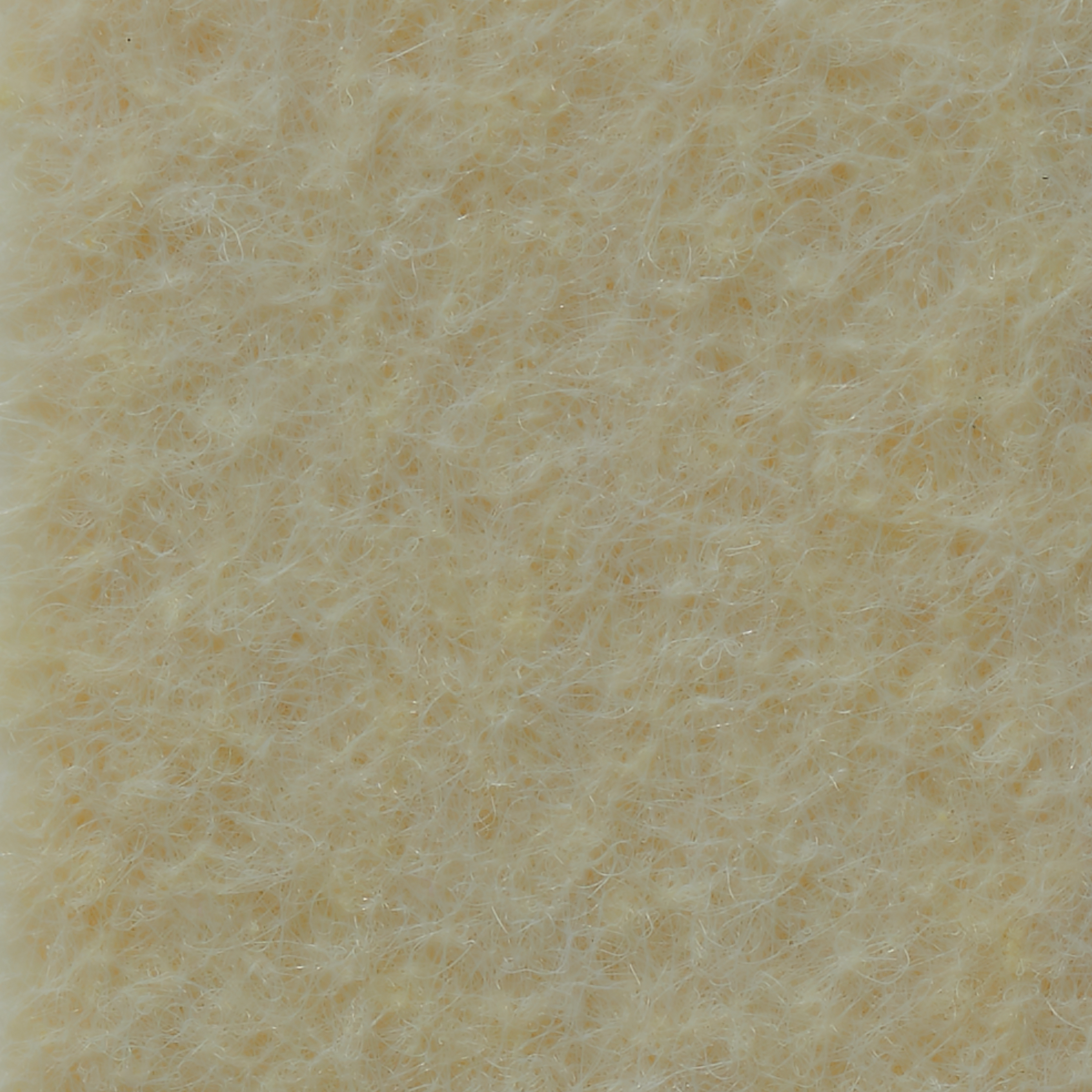

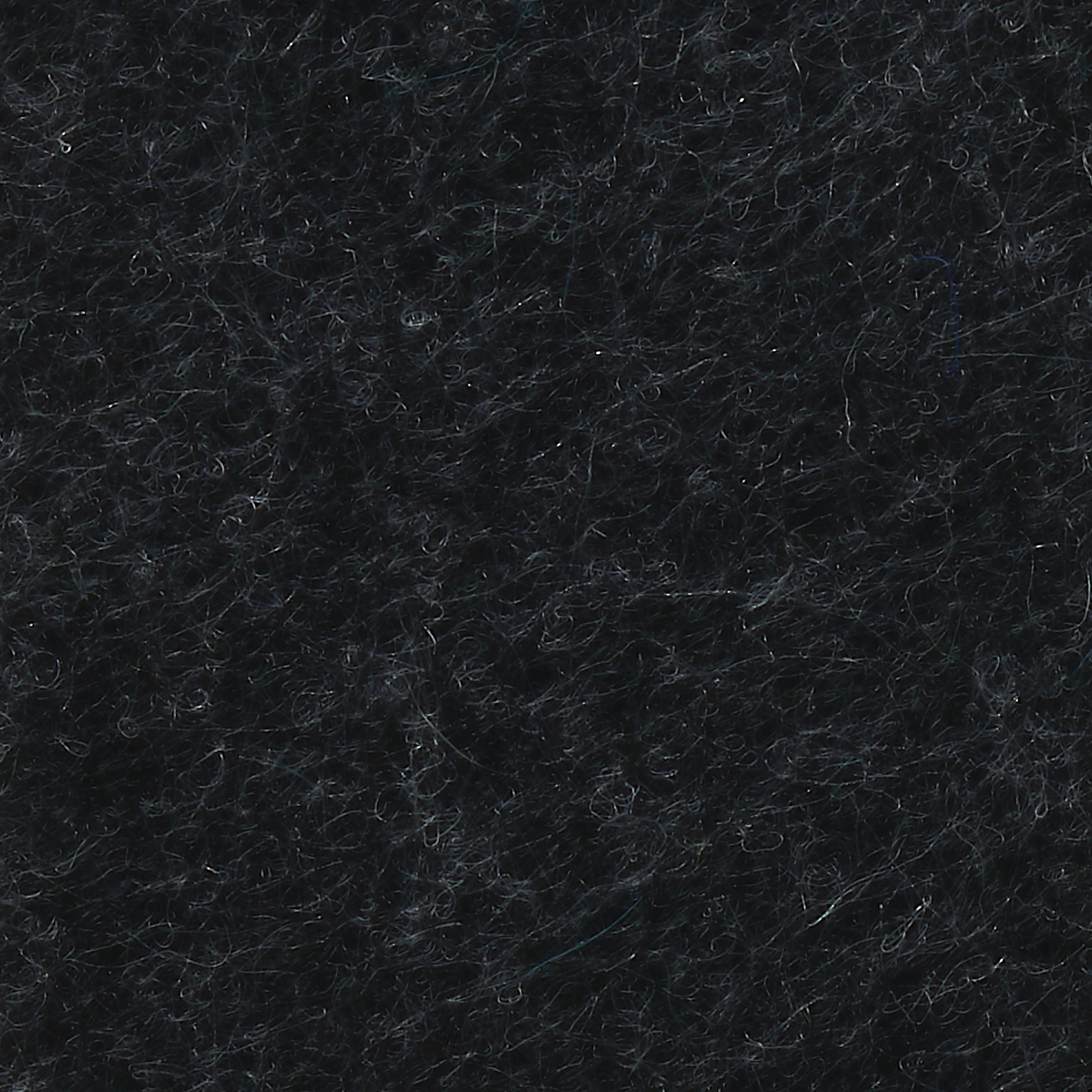

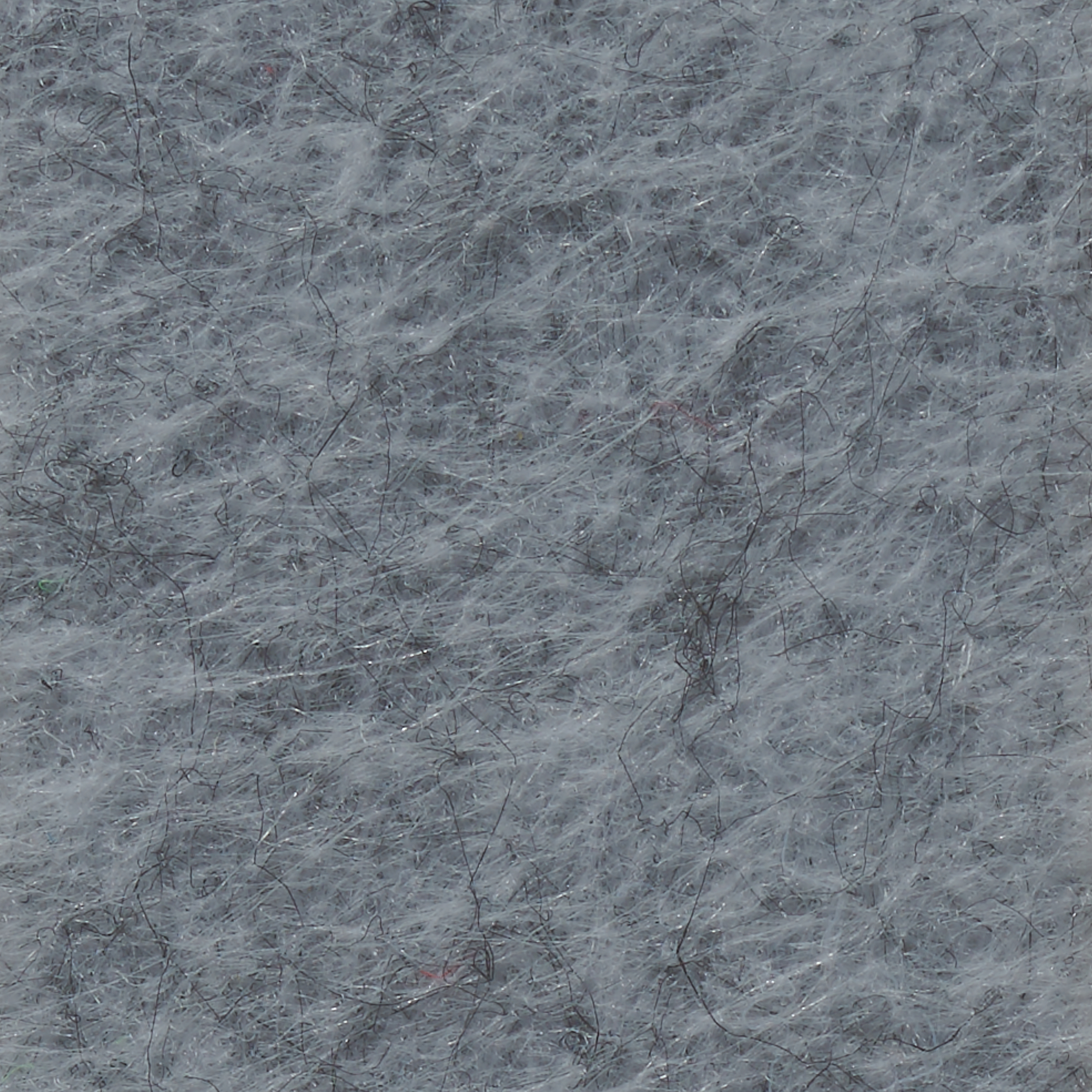

SF Colors (Top Layer)

SF-01

SF-02

SF-04

SF-10

SF-11

SF-12

SF-13

SF-14

SF-15

SF-16

SF-18

SF-19

SF-20

SF-24

SF-25

SF-27

SF-26

SF-28

SF-29

SF-30

SF-31

SF-32

SF-33

SF-35

SF-36

SF-37

SF-38

SF-39

SF-40

SF-43

SF-44

SF-47

SF-48
