G-Series

G-Series fabrics are energy efficient, controlling heat and glare while still providing see-through visibility at desired levels. These fabrics are low odor, toxic free, and certified to the Oeko-Tex®, as well as ASTM® standards. All fabrics meet Fire Classification NFPA-701. G-Series are available with DFB’s manual and motorized systems as well as Lutron low voltage QS shading systems.

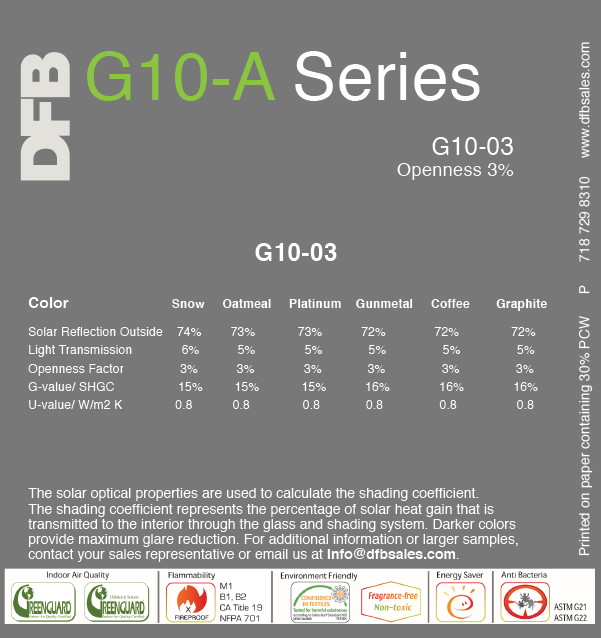

G10-A SERIES

A microscopic layer of aluminum is applied to this high performance fabric, reflecting sunlight away from buildings, to effectively reduce heat and glare and ensure a comfortable indoor climate.

  • Available openness factors: 3%

  • Colors: Snow, Oatmeal, Platinum, Gunmetal, Coffee, and Graphite

  • Approved for railroading

For more information, click here to access our G10-A Handout.

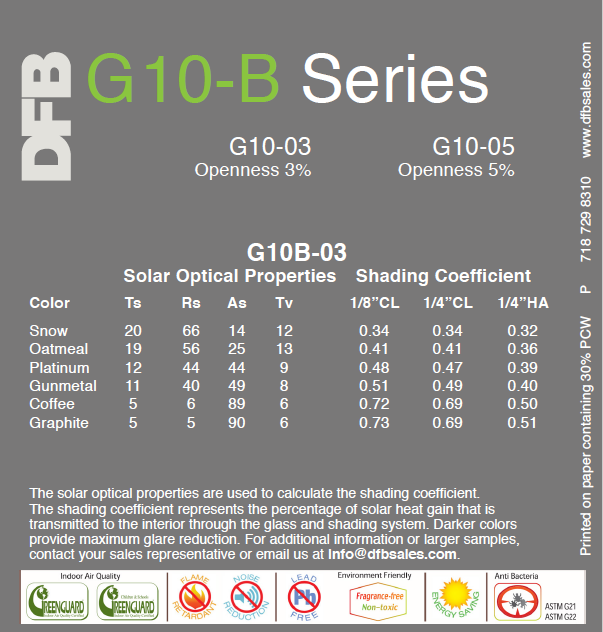

G10-B SERIES

G10-B is an ideal choice for projects that require noise reduction. With a more robust core yarn, sound does not pass through the fabric, but instead dissipates.

  • Available openness factors: 3%, 5%

  • Colors: Snow, Oatmeal, Platinum, Gunmetal, Coffee, and Graphite

  • Approved for railroading

For more information, click here to access our G10-B Handout.

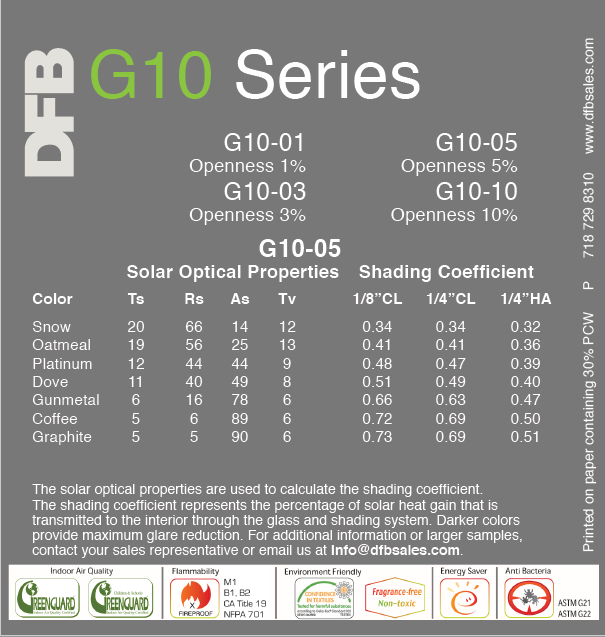

G10 SERIES

Most functional lightweight basketweave and ideal for large shades.

  • Available openness factors: 1%, 3%, 5%, 10%

  • Colors: Snow, Oatmeal, Platinum, Dove, Gunmetal, Coffee, and Graphite

  • Approved for railroading

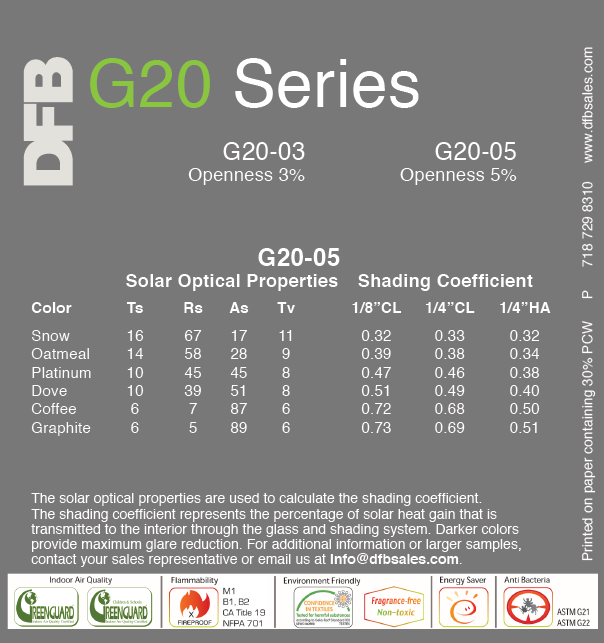

G20 SERIES

Heavier weight basketweave ideal for commercial applications.

  • Available openness factors: 3%, 5%, 10%

  • Colors: Snow, Oatmeal, Platinum, Dove, Coffee, and Graphite

  • Approved for railroading

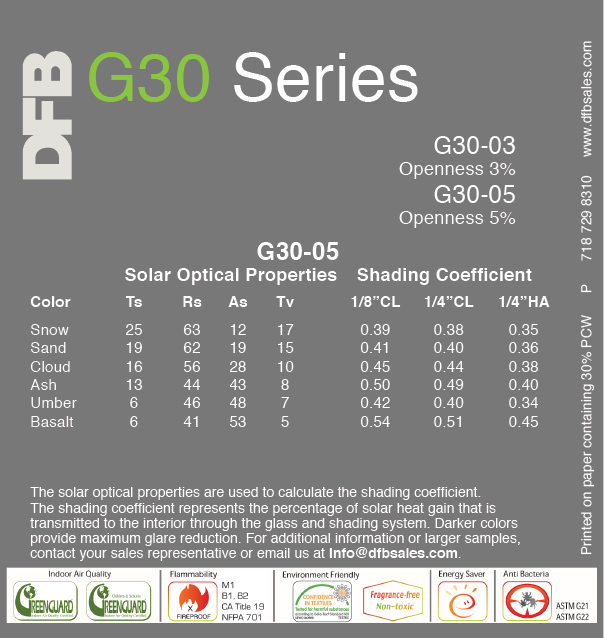

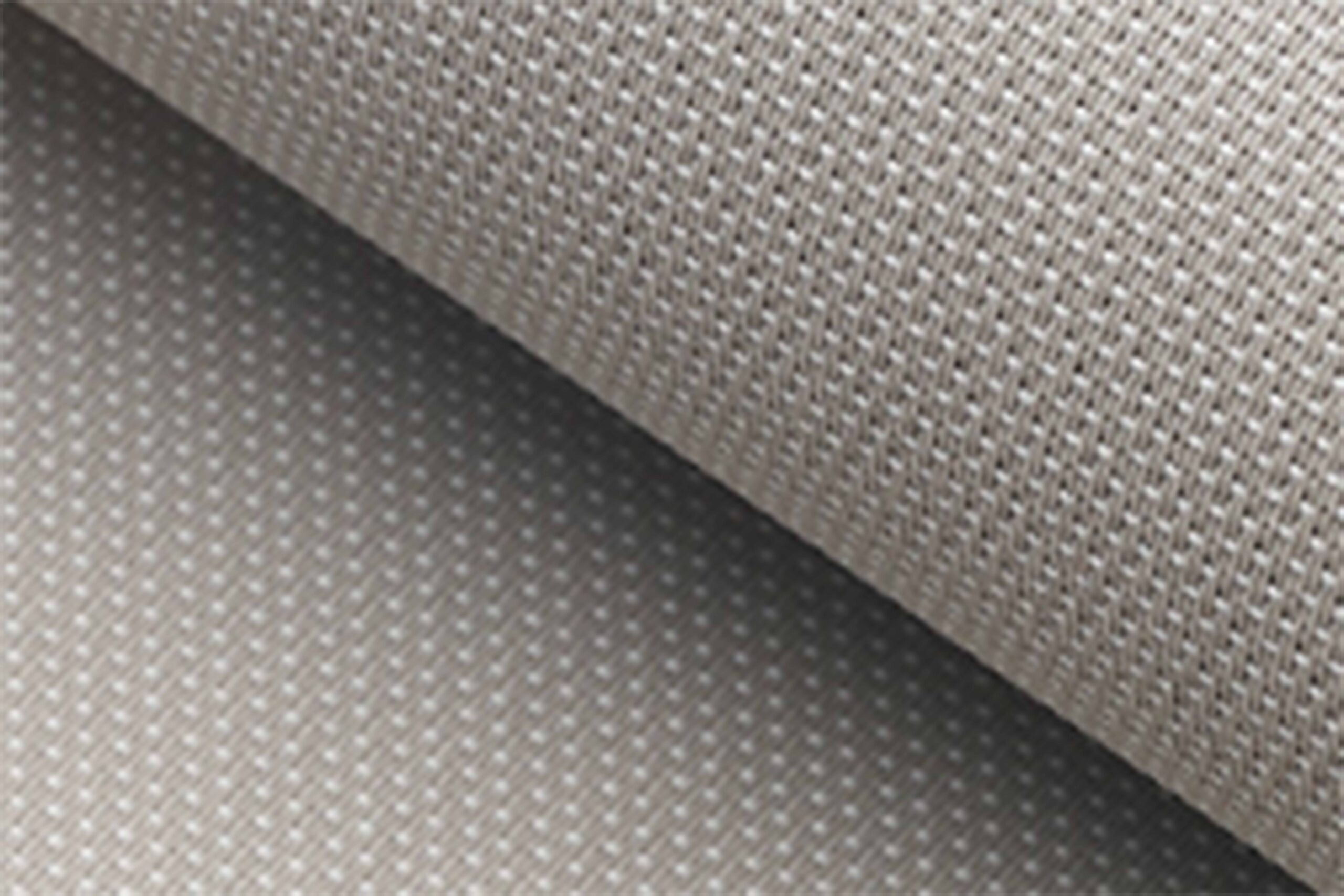

G30 SERIES

Dual sided twill weave for maximum performance in heat reduction, glare reduction, and improved visibility.

  • Available openness factors: 3%, 5%

  • Colors: Snow, Sand, Cloud, Ash, Umber, Basalt

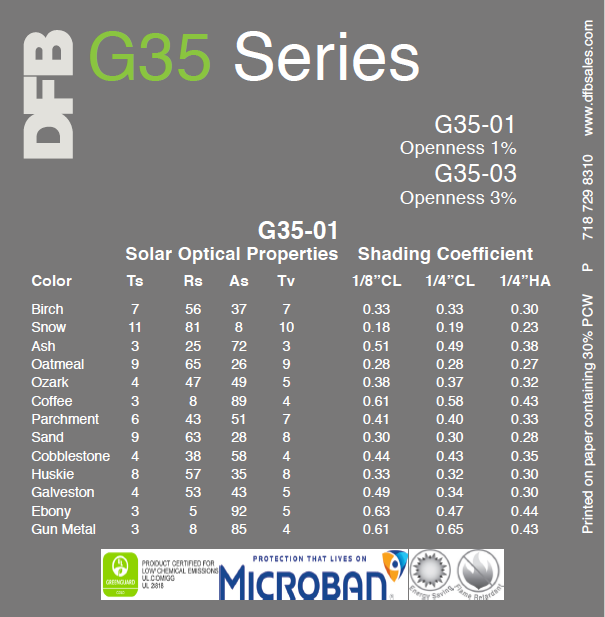

G35 SERIES

This unique combination of color and weave uses thin and light weight vinyl-coated polyester yarn, and offers a very versatile selection. This Fabric is PVC Free.

  • Available openness factors: 1%

  • Colors: Birch, Snow, Ash, Oatmeal, Ozark, Coffee, Parchment, Sand, Cobblestone, Huskie, Galveston, Ebony, Gun Metal

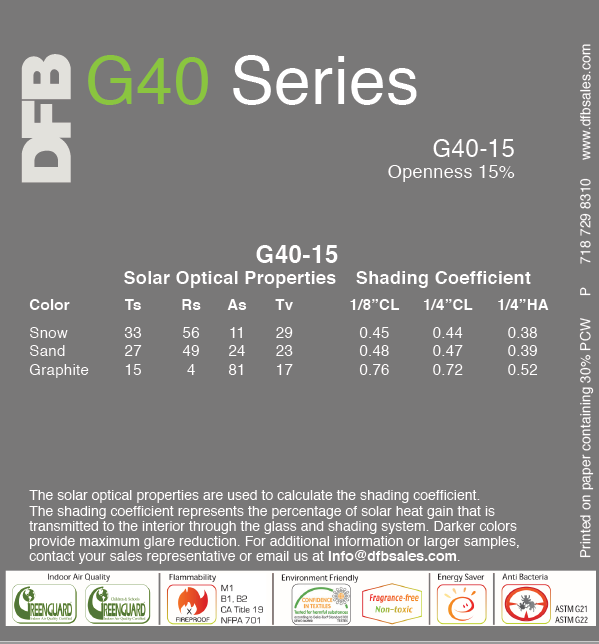

G40 SERIES

Open vertical striped weave that is ideal for applications where high visibility of outside views is desired.

  • Available openness factors: 15%

  • Colors: Snow, Sand, Graphite

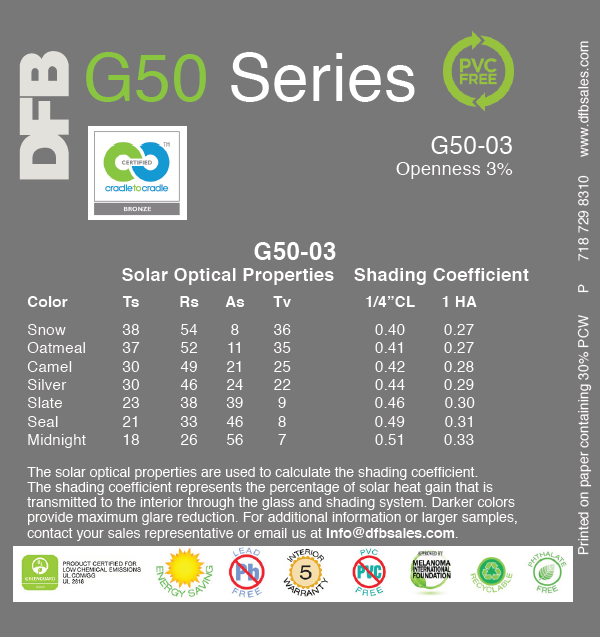

G50 SERIES

This Cradle to Cradle fabric is made of 100% recyclable material. G50 is PVC free, Halogen free, and Phthalate free, and provides improved energy efficiency in dark colors.

  • Available openness factors: 3%

  • Colors: Snow, Oatmeal, Camel, Silver, Slate, Seal, Midnight

G55 Series

Recyclable and PVC free, this eco-friendly material provides heat and glare control and helps to conserve energy.

  • Available openness factors: 1%, 3%, 5%

  • Colors: Cotton, Almond, Wheat, Stone, Barley, Nickel, Midnight, Bark, Slate

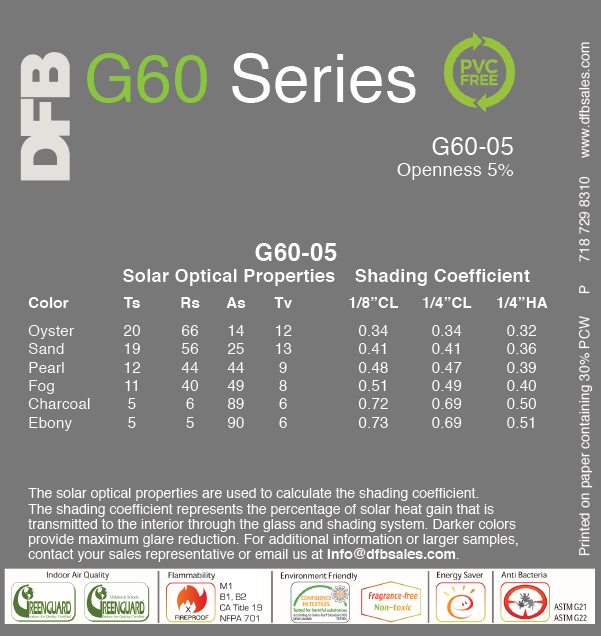

G60 SERIES

This PVC free roller shade fabric is designed to minimize the effect of the sun, similar to that of a traditional screen, minus the PVC.

  • Available openness factors: 5%

  • Colors: Oyster, Sand, Pearl, Fog, Charcoal, Ebony

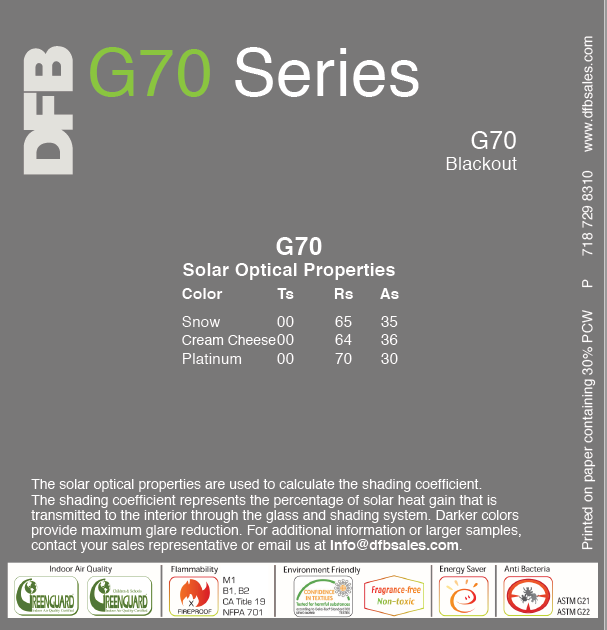

G70 SERIES

Blackout fabric with G10 laminate.

  • 0% openness factor

  • Colors: Snow, Cream Cheese, Platinum

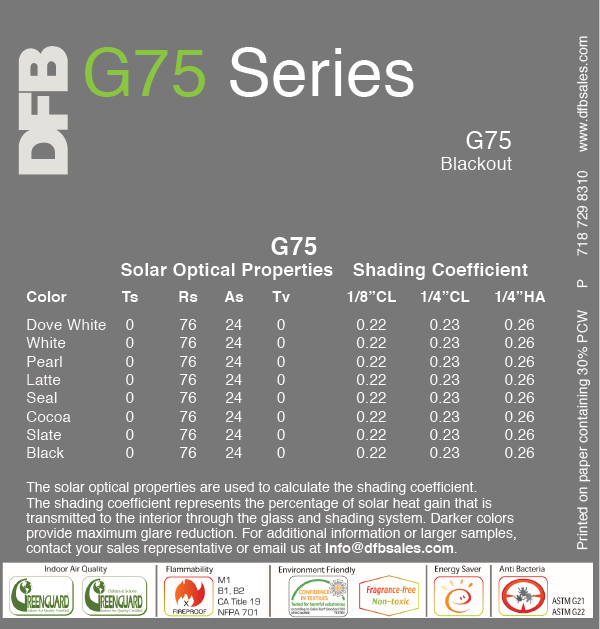

G75 SERIES

This fabric is ideal for a variety of applications that require total blockage of sunlight and privacy. Made with 100% polyester and an acrylic coating, G75 Series is PCV-free. This high quality fabric is a great addition to any room, greatly reducing glare and solar heat.

  • 0% openness factor

  • Colors: Dove White, White, Pearl, Latte, Seal, Cocoa, Slate, Black

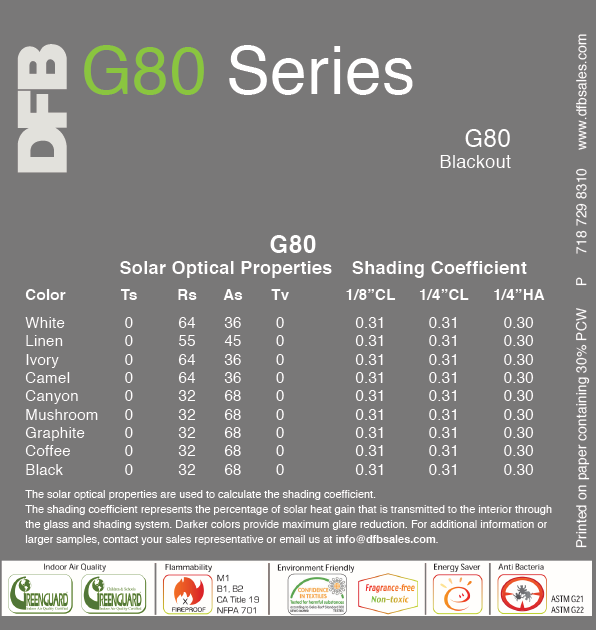

G80 SERIES

PVC Free Blackout fabric with linen face and wide width option for total light blockage.

  • 0% openness factor

  • Colors: White, Linen, Ivory, Camel, Canyon, Mushroom, Graphite, Coffee, Black

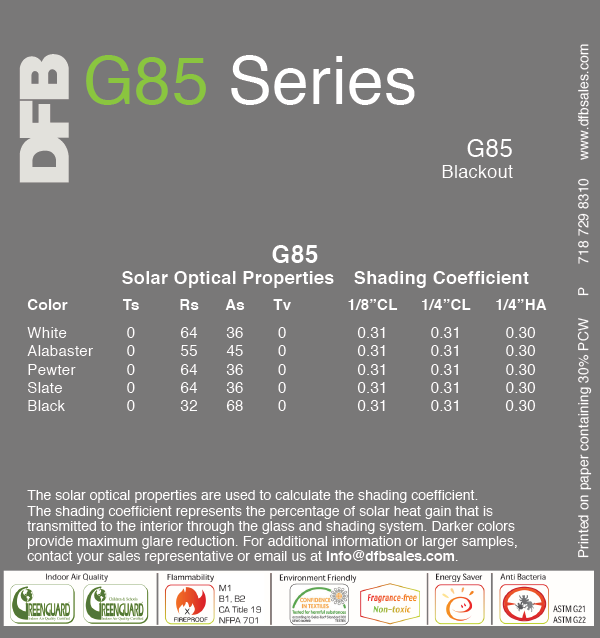

G85 SERIES

Vinyl coated blackout fabric.

  • 0% openness factor

  • Colors: White, Alabaster, Pewter, Slate, and Black

GL SERIES

Multi-ply laminated acrylic film ideal to cut glare.

  • Colors: Smoke and Bronze

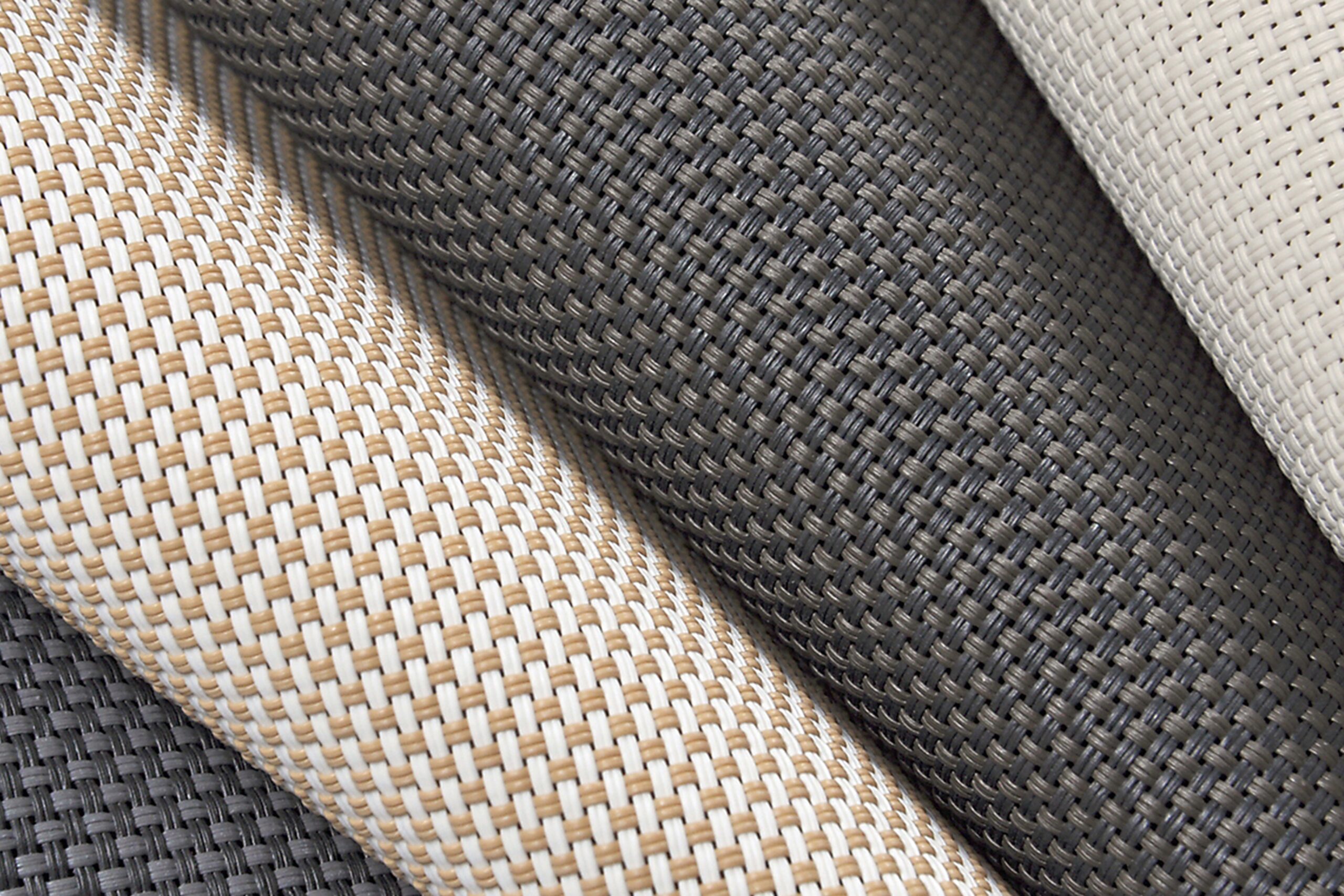

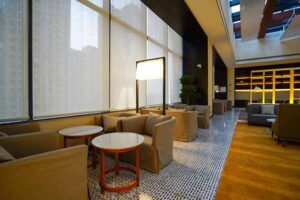

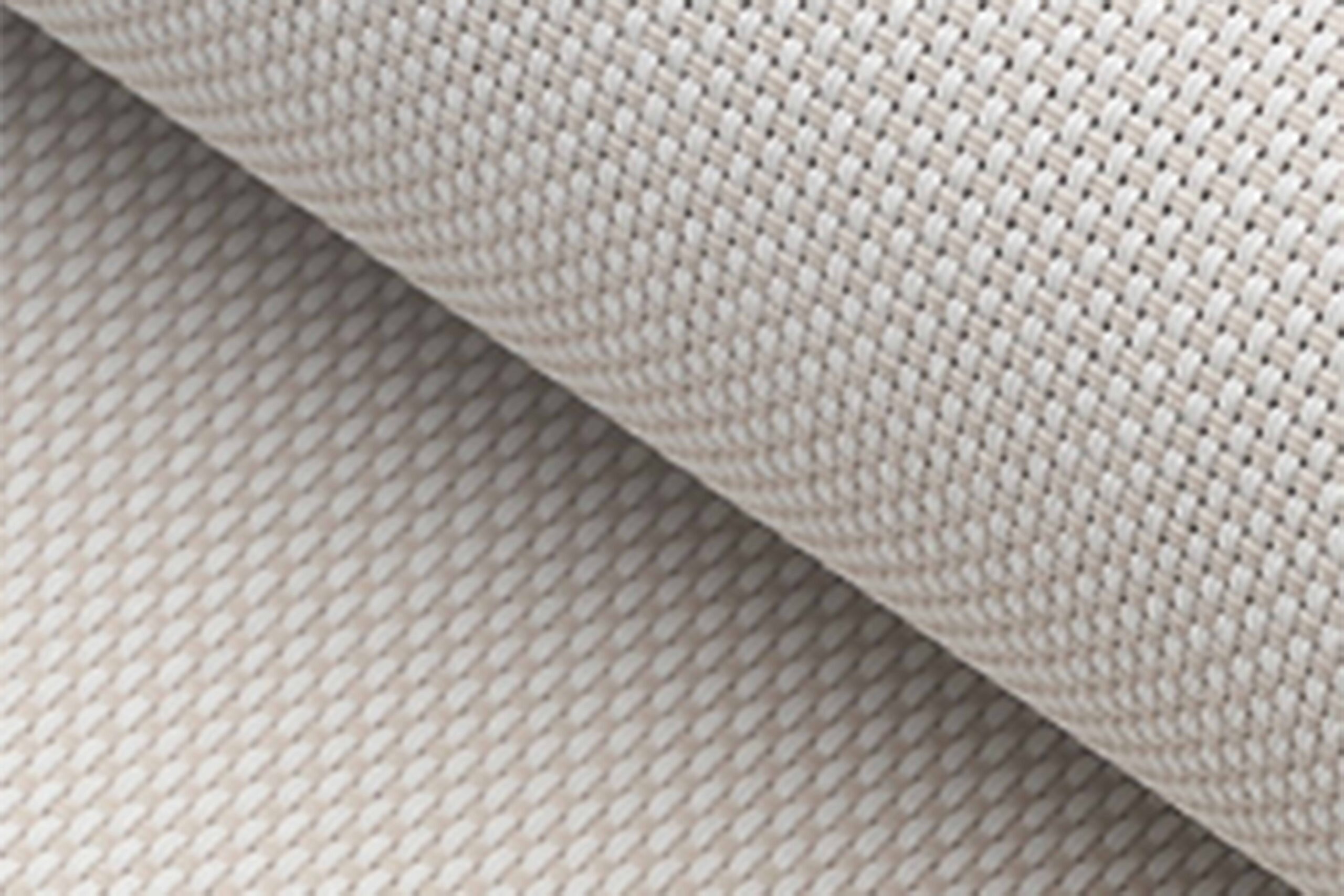

G-Series Gallery
